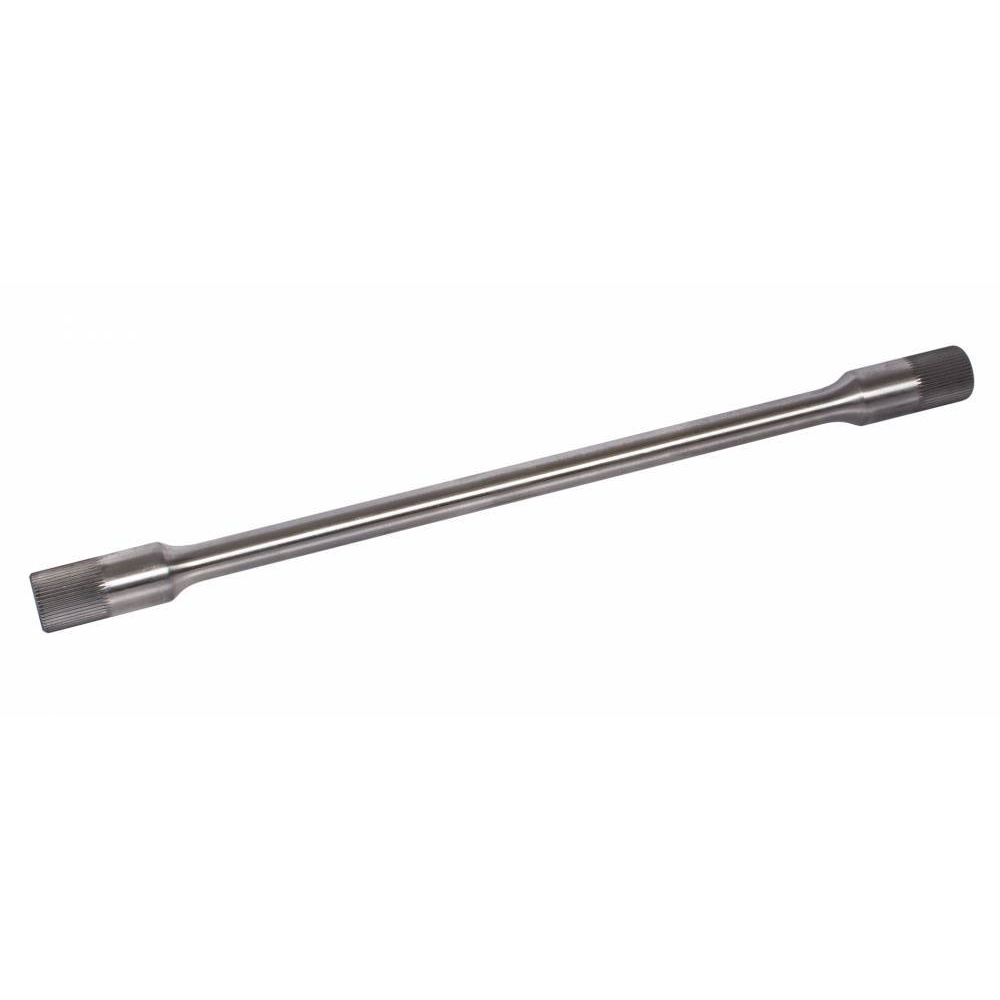

Designfab 40" Long, Heavy Duty Strength 1-1/8" Diameter 48 Spline Solid Torsion Bar . 5
All Designfab Industrie's Torsion bars are manufactured here in Australia using custom Imported chromoly.

Lenght - 45"/1143 mm
Thickness after taper - 1.00" diameter in the center

The ends are 1-1/8" diameter 48 spline. Approximately 30mm spline length with about 30mm long smooth section for the bush to run on before it tapers down to desired thickness. Both ends are about 60mm long before it tapers down. Manufactured from a custom imported hardend chromoly steel solid bar.

This bar ONLY works with Designfab arms and DIY splines pucks.

(DFI-Tors-45-Heavy)

SKU DFI-Tors-45-Heavy
Shipping Weight 4.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 1.200m
Shipping Cubic 0.003000000m3
