All Wilwood products are an order in item unless otherwise stated. Most lead times are 4 to 12 days.

Manufacturer's Part Number: 160-816

Part Type: Brake Rotors

Product Line: Wilwood GT Series Curved Vane Rotors

Intended for Street Use: No

For Use with Stock Calipers: No

Rotor Construction: Vented

Rotor Style: Slotted surface

Rotor Outside Diameter (in.): 13.06 in.

Brake Rotor Bolt Pattern (in.): 12 x 8.75 in.

Brake Rotor Bolt Pattern (mm): 12 x 222.25mm

Nominal Thickness (in.): 1.250 in.

Rotor Material: Iron

Rotor Finish: Natural

Quantity: Sold individually.

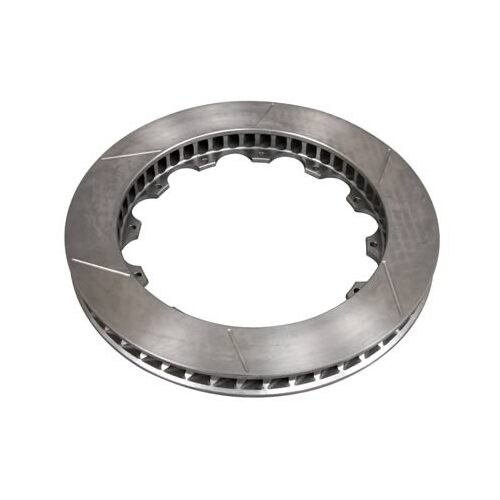

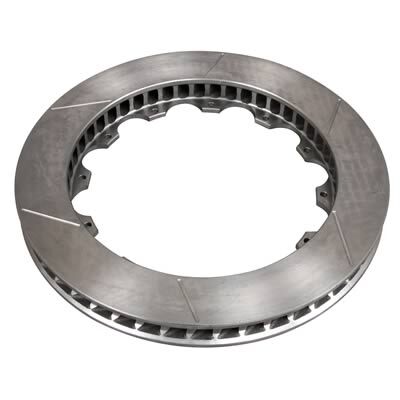

Wilwood GT Series Curved Vane Rotors

Wilwood GT Series curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy-wall rotors are the keys to preventing heat-fade—and realizing a long service life from the rotors and pads. All rotors are cast from premium-grade, long-grain carbon iron for extended wear, thermal stability, and resistance to distortion. Wilwood GT rotors are fully detail-machined to eliminate stress points and unnecessary weight away from the pad sweep face. Each rotor faces and O.D. is precision-turned to less than .001 in. for flatness, parallelism, and runout. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics—and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic-balanced to offer vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme-braking short tracks and road course competition.


SKU WIL-160-8166
Brand Wilwood
Shipping Weight 4.0000kg
Shipping Width 0.450m
Shipping Height 0.300m
Shipping Length 0.450m
Shipping Cubic 0.060750000m3
