Manufacturer's Part Number:


Part Type:

In Tank Multi Point Fuel Pickup Components

Product Line:

Walbro Replacement In-Tank Fuel Pickups

Summit Racing Part Number:


In Tank Multi Point Fuel Pickup Component Type:

Fuel pickup


Sold individually.

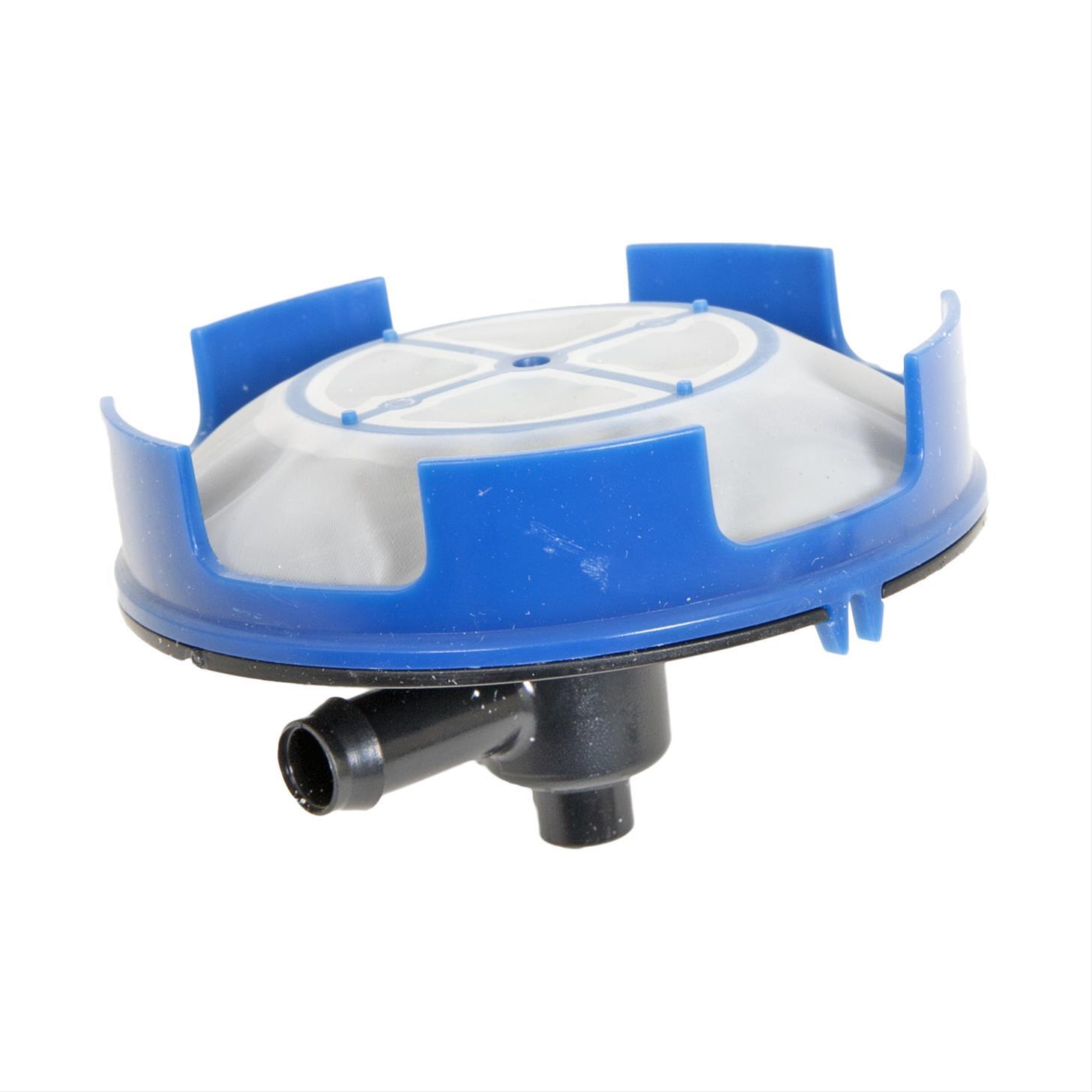

Dead end style pickup, 5/16 in. fitting on the top, no bleed hole. If the fuel pickups are completely dry at startup, the pump will suck air, they won't close unless they have been initially immersed in fuel.

Walbro Replacement In-Tank Fuel Pickups

Walbro replacement in-tank fuel pickups were originally developed for snowmobile applications, but they work great in rock-crawlers, or in fuel tanks that don't have baffles. They're the same type of pick-ups found in the Holley universal in-tank mulit-point fuel pick-up kit (Walbro made those for Holley). They work like a screen sprayed with water—holding on to some of the water even after spraying stops. Prevent your fuel pump from sucking air with the Walbro fuel pickups designed to fit your application.

Product features and specs:

* Improved mesh from 30 to 70 microns, preventing goo buildup when using newer fuels in plastic tanks
* When fuel moves away from the pickups, they retain enough to act as a solid preventing the pump from drawing air, but allow fuel transfer once submerged again
* One or two 5/16 fittings, depending on application (models with 2 pickups can be used in series)
* Tested in gasoline to -40 degrees F and diesel fuel to 0 degrees F
* Capable of 40 gph per pickup to meet high-performance needs
