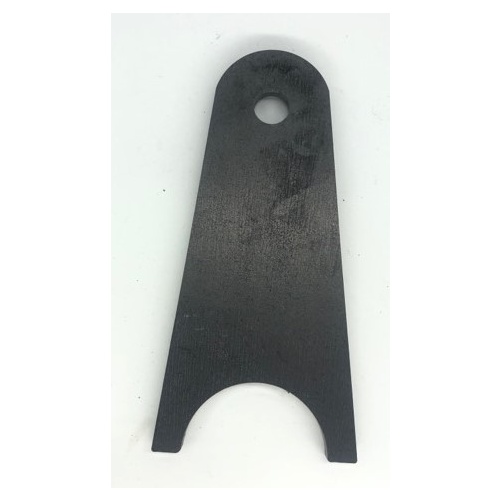

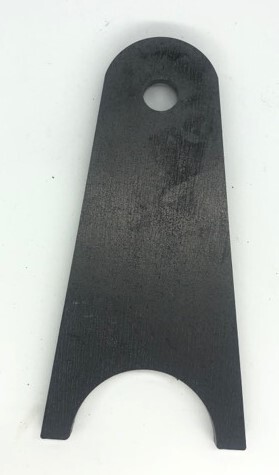

Shock tabs a spacificly designed for mounting shocks, coilovrs and air shocks. They have less material around the bolt hole in compairison to a link tab. This is to give more clerance for the shock ends. On heavier vehicles, builds designed for speed or endurance races we would recomend using weld on tear drop washers for added strength.

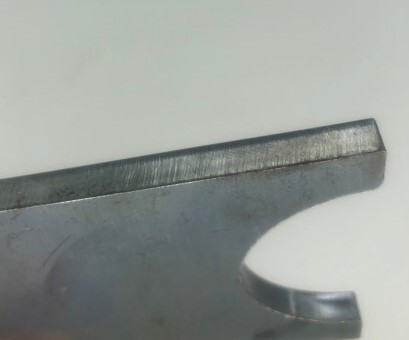

All DesignFab Industries shock Tabs are precision cut with a fiber optic CNC laser to make sure they are cut perfectly with a clean presentable finish.

Most Tabs are kept in stock on the shelf. If we are out of stock they are back in stock normally within 2 days.

All Tabs are cut from 6mm thick 250 grade mild steel unless specified otherwise.

Sizing information

A)   13mm             Bolt Size

B)    91mm         Mounting Surface to bolt Center

C) 1.75"/44mm      Base



(DFI-133-44D-13-LP)

SKU DFI-133-44D-13-LP
Brand Designfab Industries
Shipping Weight 0.2800kg
Shipping Width 0.080m
Shipping Height 0.020m
Shipping Length 0.110m
