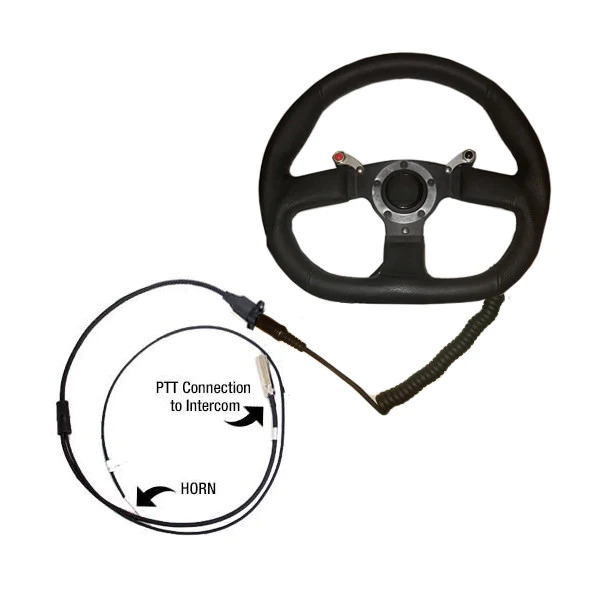

Have a quick release steering wheel and want to wire up your horn and Push to talk? This assembly kit will allow you to mount the female jack in the dash and quick release the wires from your dash when you remove the steering wheel.

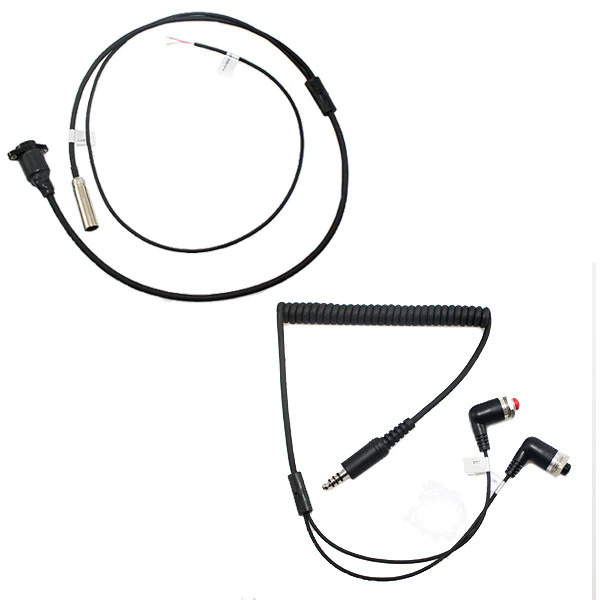

Includes:

  • Male PTT to connect to the back of intercom to Female flush mount for the dash.
  • Red PTT button for the radio and black PTT button for an accessory, coil cord with male end quick disconnect.
  • Two aluminum PTT brackets to mount buttons.

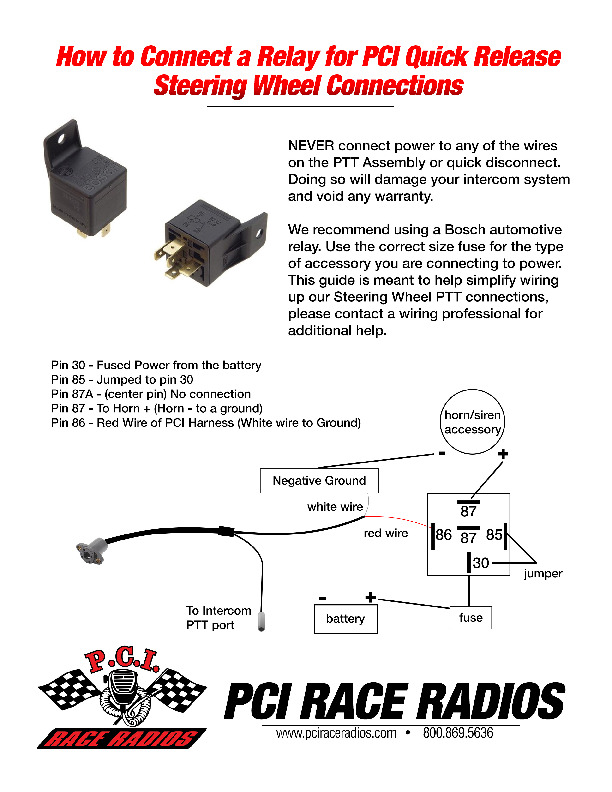

Do not hook power up to any of these wires, you will damage the intercom! You will need a relay (and a little wiring knowledge) to hook up the button to a horn or other accessory like a siren so you don't send power into the system. Here is a wiring diagram.

The PTT end is designed to work with a harness or a Comlink 10 intercom and has a male end. If using with a 4 Link Pro or Trax Intercom System, add on the gender changer to convert to a female PTT connection.

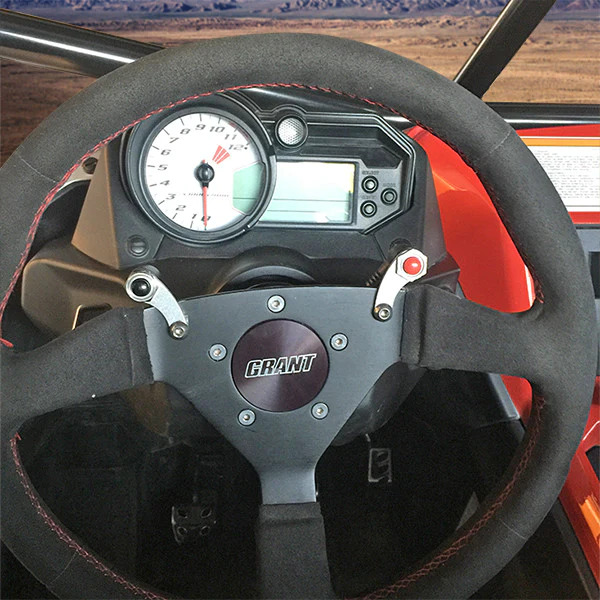

Steering wheel not included, shown in photo for display purposes only.

(PCI-2526)

SKU PCI-2526
Brand PCI Race Radios
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.025m
Shipping Length 0.150m
Shipping Cubic 0.000750000m3
