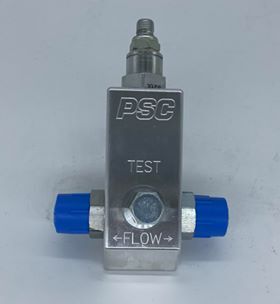

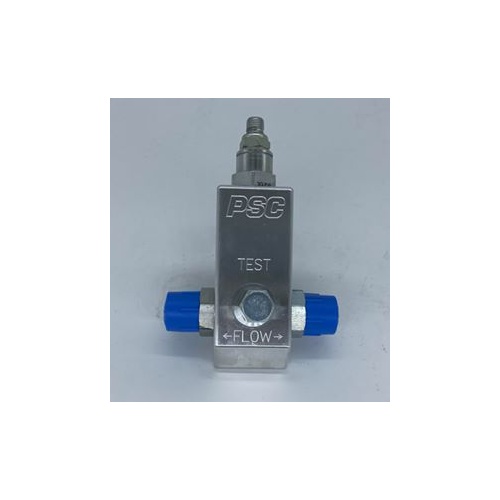

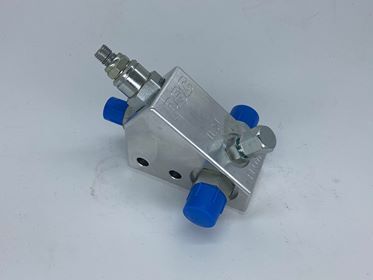

The SPX2510 is designed to work with PSC SPX Series RACE USE Power Steering Pumps with a disabled internal flow control/pressure relief valve.

The adjustable relief valve provides a way to prevent over-pressurizing the power steering system and bleed off fluid back to the reservoir tank.

The cartridge relief valve is pre-set to 1650psi and can is adjustable after installation if required. The valve block features a test port that allows a pressure gauge to be installed to check the power steering system operating pressure.

Pressure line ports are #8 (3/4-16), Return-To-Reservoir port is #6 (9/16-18), and Pressure Test port is #4 JIC Male



(PSC-SPX2510)

SKU PSC-SPX2510
Brand PSC Motorsports
Shipping Weight 0.5000kg
Shipping Width 0.090m
Shipping Height 0.090m
Shipping Length 0.090m
Shipping Cubic 0.000729000m3
