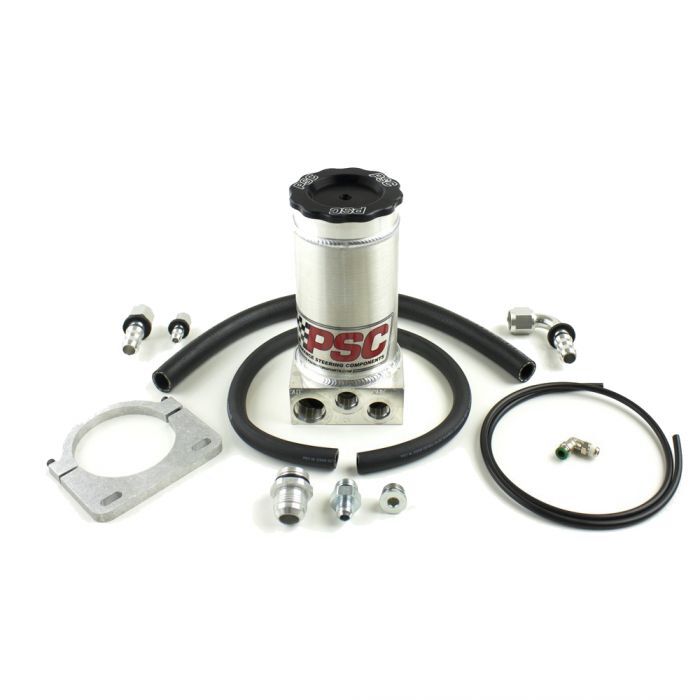

PSC reservoirs are 8.75" tall manufactured out of 6061T6 aluminium and are TIG welded together with the best welds you will ever see. Another great feature is the 35 micron cartridge filter inside that can serviced through the large fill cap. You would now have a serviceable power steering system that you could do regular oil and filter changes on.

Features:

  • Replaceable Wix filter
  • Sold with or without hose kit
  • Selectable fittings 6AN/8AN return fitting and 10AN/12AN feed fitting to pump
  • Now with new optional Aux port for hydro boost brakes
  • Universal mount clamp included
  • Included is a billet clamp for easy hanging or optional universal base mount for those tight engine compartments

A pretty reservoir that works. This is just not a hollow can made for looks, this reservoir is more functional as it is good looking. The reservoir has an integral filter system, that virtually eliminates any chances for cavitation leading to heat and loss of pressure in the system. This helps prevent noise and eventually failure to your power steering pump. A oversized vented and o-ring sealed cap allows easy filling and fluid inspection.



Note: It is recommended to mount the reservoir so the fluid level remains above the level of the pump and that the hose the supplies fluid back to the pump from the reservoir not exceed 16”. If the pump supply hose exceeds the 16” you could possibly create a vacuum situation that will create aeration in the pump. This will results in a noisy, whining pump that will eventually fail.



Also available in 8.25" tall at same prices but are a special order.



(PSC-SR148-HOSE)

SKU PSC-SR148-HOSE
Brand PSC Motorsports
Shipping Weight 3.0000kg
Shipping Width 0.260m
Shipping Height 0.260m
Shipping Length 0.320m
