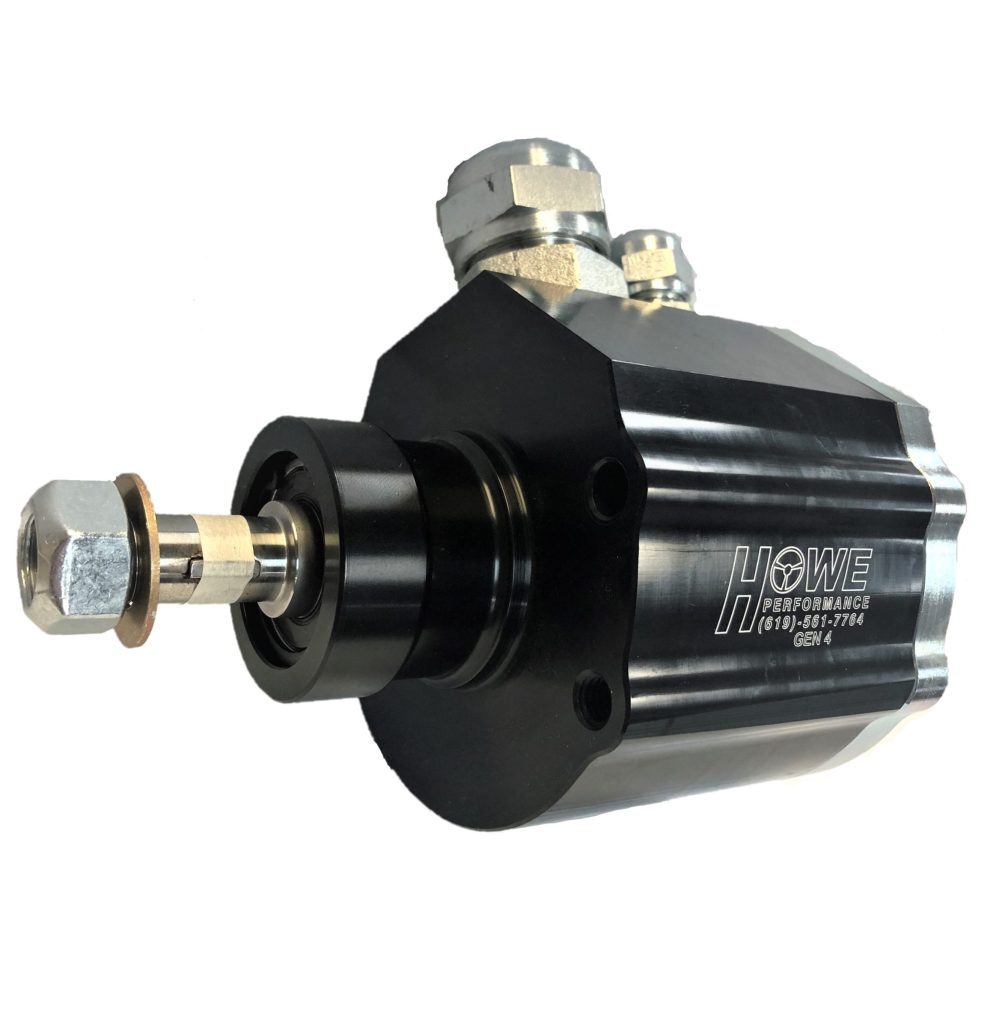

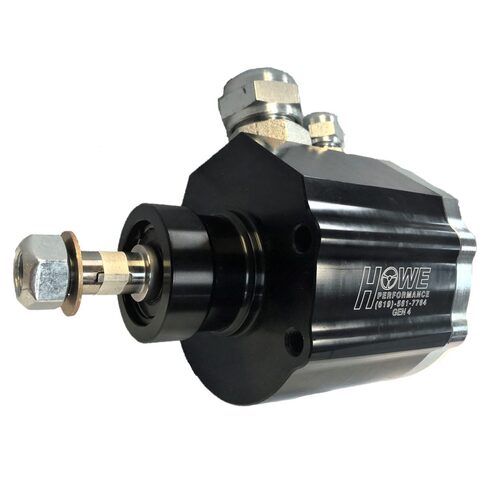

Howe's billet aluminum Trophy Truck power steering pump is designed to handle the demands of operating the larger power steering racks on heavier race vehicles like Trophy Trucks. It can flow up to 10 gallons per minute and is rated for 1650 PSI. It features a -16 AN fitting for the return and a -8 AN fitting for high pressure. The pump has a keyed pulley shaft.


Key Features:

  • 13 bolt STEEL back cap is thicker and threaded into the housing unlike a cast pump which uses a wire clip
  • The large #16 allen plug (1-5/16"-12 thread) allows you to reposition the #16 male return fitting
  • 10 Gallons per minute
  • 1650 PSI
  • 300m shaft

  • Notes:
    Requires Howe's 229-1101 power steering relief and flow control valve

    Maximum RPM 6000

    Eaton 202702-16-12s = #16 ORB to #12 male steel version of Fragola 495118

    Eaton 202702-16-16s = #16 ORB to #16 male. Stock fitting that Howe provides in this pump

(HOWE-229-4-T)

SKU HOWE-229-4-T
Brand Howe
Shipping Weight 4.6000kg
Shipping Width 0.020m
Shipping Height 0.013m
Shipping Length 0.017m
Shipping Cubic 0.000004420m3
