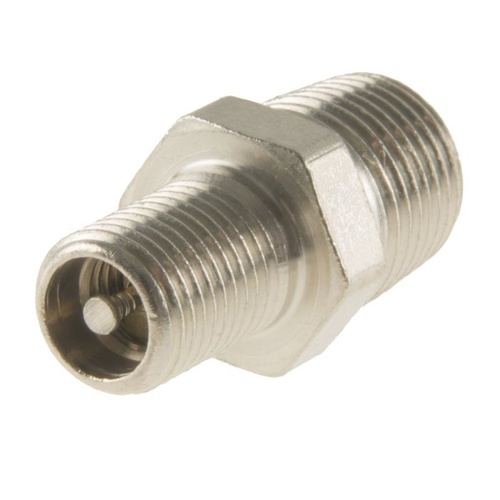

The Older Style Valve: FOX-010-00-007A

This is the standard nitrogen valve that you find on Fox Shocks and some other brands such as King Shocks. This valve is rated up to 250psi for standard, coil-over, or emulsion shocks. If you have an 'air shock' that uses pressure greater than 250psi, we also offer the high-pressure schrader valve.

On older Fox Shocks with a welded top instead of the billet aluminum top, those shocks usually used a 1/8" NPT schrader valve NOT a 7/16"-20 valve.

• 1/8-27 MNPT Thread - Shock Side
• 5/16-32 UNEF Thread - Standard Cap Side
• Steel body, Nickel plated

The Newer Style Valve: FOX-802-00-013KIT

This is the standard nitrogen valve that you find on Fox Shocks and some bypass shocks. This valve is rated up to 250psi for standard, coil-over, or emulsion shocks. If you have an 'air shock' that uses pressure greater than 250psi, we also offer the high-pressure schrader valve.

• 7/16-20 ORB Thread - Shock Side
• 5/16-32 UNEF Thread - Standard Cap Side
• Brass body

The Newer Style High PSI Valve: FOX-802-00-008KIT

This is the high-pressure nitrogen valve that you find on Fox Air Shocks and some bypass shocks. We also offer the lower-pressure schrader valve found on standard, coil-over, and emulsion shocks. This Schrader valve includes a viton o-ring seal.

On older Fox Shocks that had a welded top instead of the billet aluminum top, those shocks usually used a 1/8" NPT schrader valve NOT this 7/16"-20 valve.

• 7/16-20 ORB Thread - Shock Side
• 5/16-32 UNEF Thread - Standard Cap Side
• Stainless Steel Body
