• COMMERCIAL SERIES
  • LUBRICATION GROOVES AND HOLES IN ID & OD OF RACE
  • PTFE LINER AVAILABLE (ADD SUFFIX “T”)
    • EXAMPLE: COM12T
  • UNITS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • RACE
  • LOW CARBON STEEL
  • OIL COATED
BEARING
PART
NUMBER
B
DIA
D
DIA
W
WTH
T
WTH
O
DIA
BALL
DIA
F
CHAMFER
a
MIS
ANGLE
ULT STATIC
RADIAL
LOAD
APPROX
WEIGHT
  +.0015
-.0005
+.0000
-.0007
+.005
-.005
+.005
-.005
REF REF REF REF (lbs) (lbs)
COM3 .1900 .5625 .281 .218 .293 .406 .015 11 3,250 .014
COM4 .2500 .6562 .343 .250 .364 .500 .022 13.5 4,950 .022
COM5 .3125 .7500 .375 .281 .419 .562 .032 12 6,475 .030
COM6 .3750 .8125 .406 .312 .516 .656 .032 10 8,400 .038
COM7 .4375 .9062 .437 .343 .530 .687 .032 8 9,453 .047
COM8 .5000 1.0000 .500 .390 .600 .781 .032 9.5 13,250 .065
COM8-101 .5000 1.0000 1.000 .390 .600 .781 .032 9.5 13,250 .065
COM8-103 .5000 1.0000 1.500 .390 .600 .781 .032 9.5 13,250 .065
COM9 .5625 1.0937 .562 .437 .671 .875 .032 9.5 16,630 .086
COM10 .6250 1.1875 .625 .500 .739 .968 .032 8.5 21,280 .110
COM12 .7500 1.4375 .750 .593 .920 1.187 .044 9 31,920 .204
COM12T-3R** .7500 1.4375 .750 .593 .920 1.187 .044 9 31,920 .204
COM14 .8750 1.5625 .875 .703 .980 1.312 .044 9.5 41,960 .263
COM16 1.0000 1.7500 1.000 .797 1.118 1.500 .044 10 55,200 .386
COMH16*** 1.0000 2.0000 1.000 .781 1.360 1.687 .032 9 70,820 .553
COMH19*** 1.1875 2.3750 1.187 .937 1.610 2.000 .032 8.5 100,730 .895
COMH20*** 1.2500 2.3750 1.187 .937 1.610 2.000 .032 8.5 100,730 .895
COMH24*** 1.5000 2.7500 1.375 1.094 1.860 2.312 .032 8.5 135,950 1.358
COMH28*** 1.7500 3.1250 1.562 1.250 2.110 2.625 .044 8 176,370 1.948
COMH32*** 2.0000 3.5000 1.750 1.375 2.360 2.937 .044 8.5 217,060 2.650

** BEARING COMES STANDARD WITH SNAP RING AND PTFE LINER.  CONTACT FK ENGINEERING FOR FURTHER INFORMATION.

*** BORE TOLERANCE +.0025 / -.0005

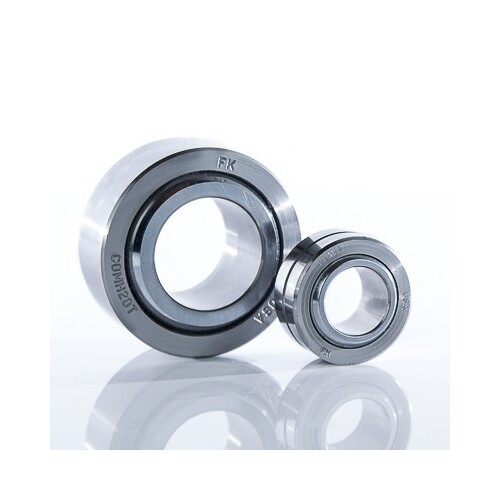

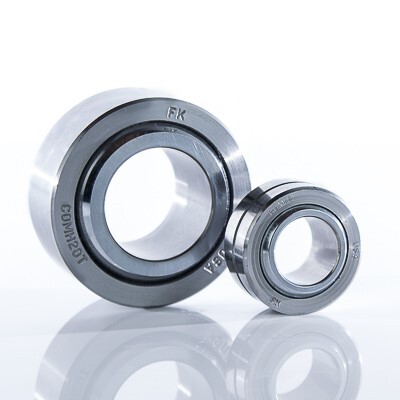

(FKBCOM12T)

SKU FKBCOM12T
Brand FK Rod End
Shipping Weight 0.1000kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
