• 3-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY AND RACE
    • ALLOY STEEL
    • HEAT TREATED
    • ZINC PLATED
    • CHROMATE TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
E
DIA
F
Flat
a Mis
Angle
ULT Static
Radial Load
Approx
Weight
    +.0025
-.0005
+.010
-.010
+.005
-.005
+.005
-.005
REF +.015
-.015
UNF
2B
+.062
-.031
+.010
-.010
+.010
-.010
REF (lbs) (lbs)
JFX3 JFXL3 .1900 .625 .312 .250 .437 1.062 10-32 .500 .406 .312 13 3,736 .04
JFX4 JFXL4 .2500 .750 .375 .281 .500 1.312 1/4-28 .687 .468 .375 16 6,195 .06
JFX5 JFXL5 .3125 .875 .437 .344 .625 1.375 5/16-24 .687 .500 .437 14 7,640 .09
JFX6 JFXL6 .3750 1.000 .500 .406 .719 1.625 3/8-24 .812 .687 .562 12 9,550 .15
JFX7 JFXL7 .4375 1.125 .562 .437 .812 1.812 7/16-20 .937 .750 .625 14 10,290 .20
JFX8 JFXL8 .5000 1.312 .625 .500 .937 2.125 1/2-20 1.062 .875 .750 12 15,340 .33
JFX10 JFXL10 .6250 1.500 .750 .562 1.125 2.500 5/8-18 1.375 1.000 .875 16 17,959 .48
JFX12 JFXL12 .7500 1.750 .875 .687 1.312 2.875 3/4-16 1.562 1.125 1.000 14 28,090 .72
JFX14 JFXL14 .8750 2.000 .875 .770 1.375 3.375 7/8-14 1.875 1.300 1.125 7 45,051 1.03
JFX16* JFXL16* 1.0000 2.750 1.375 1.000 1.875 4.125 1 1/4-12 2.125 1.625 1.500 17 76,205 2.13
JFX16-1* JFXL16-1* 1.0000 2.750 1.375 1.000 1.875 4.125 1-14 2.125 1.625 1.500 17 76,205 2.41
JFX20* JFXL20* 1.250 2.750 1.250 1.000 1.875 4.125 1 1/4-12 2.125 1.625 1.500 11 76,205 2.13
JFX24-1Z* ** JFXL24-1Z* ** 1.5000 3.500 1.312 1.125 2.155 5.375 1-1/2-12 2.625 2.250 2.00 6.5 138,800 6.50

* TOLERANCE VARIATION FOR “D” & “A” ARE +/- .020
** AVAILABLE ONLY WITH GREASE FITTING INSTALLED.

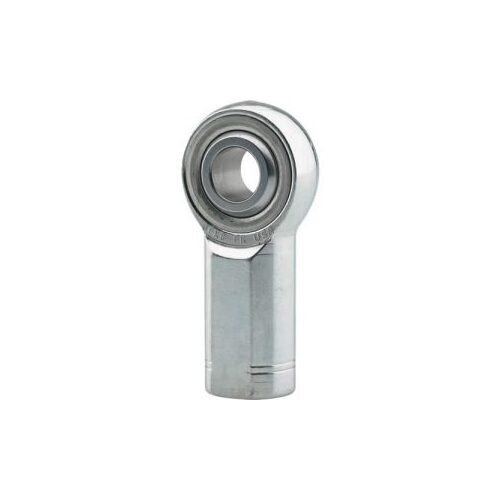

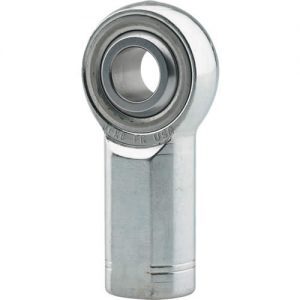

(FKBJFX12T)

SKU FKBJFX12T
Brand FK Rod End
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.040m
Shipping Cubic 0.000480000m3
