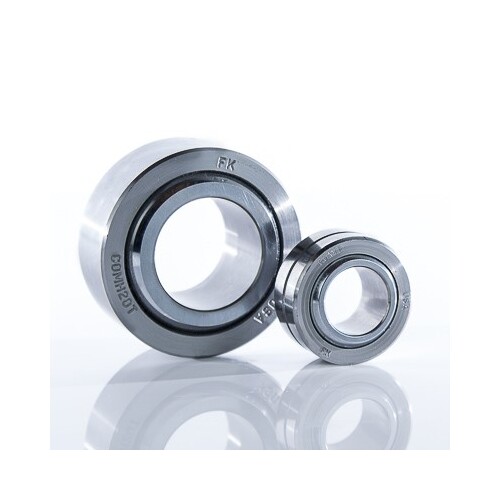

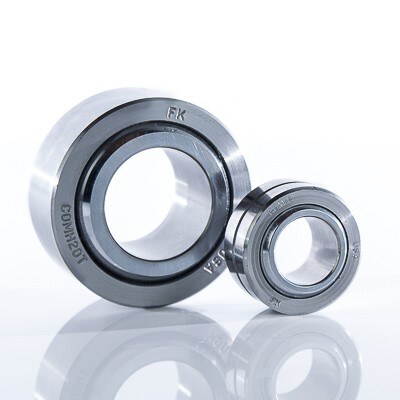

FK Rod Ends 1-1/2" ID, 2-3/4" OD COMH24T PTFE Coated Uniball Spherical Bearings F2 Fit
- COMMERCIAL SERIES
- LUBRICATION GROOVES AND HOLES IN ID & OD OF RACE
- PTFE LINER AVAILABLE (ADD SUFFIX “T”)
- EXAMPLE: COM12T
- UNITS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE
- BALL
- 52100 STEEL
- Rc 56 MIN
- HARD CHROME PLATED
- RACE
- LOW CARBON STEEL
- OIL COATED
BEARING PART NUMBER |
B DIA |
D DIA |
W WTH |
T WTH |
O DIA |
BALL DIA |
F CHAMFER |
a MIS ANGLE |
ULT STATIC RADIAL LOAD |
APPROX WEIGHT |
---|---|---|---|---|---|---|---|---|---|---|
+.0015 -.0005 |
+.0000 -.0007 |
+.005 -.005 |
+.005 -.005 |
REF | REF | REF | REF | (lbs) | (lbs) | |
COM3 | .1900 | .5625 | .281 | .218 | .293 | .406 | .015 | 11 | 3,250 | .014 |
COM4 | .2500 | .6562 | .343 | .250 | .364 | .500 | .022 | 13.5 | 4,950 | .022 |
COM5 | .3125 | .7500 | .375 | .281 | .419 | .562 | .032 | 12 | 6,475 | .030 |
COM6 | .3750 | .8125 | .406 | .312 | .516 | .656 | .032 | 10 | 8,400 | .038 |
COM7 | .4375 | .9062 | .437 | .343 | .530 | .687 | .032 | 8 | 9,453 | .047 |
COM8 | .5000 | 1.0000 | .500 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
COM8-101 | .5000 | 1.0000 | 1.000 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
COM8-103 | .5000 | 1.0000 | 1.500 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
COM9 | .5625 | 1.0937 | .562 | .437 | .671 | .875 | .032 | 9.5 | 16,630 | .086 |
COM10 | .6250 | 1.1875 | .625 | .500 | .739 | .968 | .032 | 8.5 | 21,280 | .110 |
COM12 | .7500 | 1.4375 | .750 | .593 | .920 | 1.187 | .044 | 9 | 31,920 | .204 |
COM12T-3R** | .7500 | 1.4375 | .750 | .593 | .920 | 1.187 | .044 | 9 | 31,920 | .204 |
COM14 | .8750 | 1.5625 | .875 | .703 | .980 | 1.312 | .044 | 9.5 | 41,960 | .263 |
COM16 | 1.0000 | 1.7500 | 1.000 | .797 | 1.118 | 1.500 | .044 | 10 | 55,200 | .386 |
COMH16*** | 1.0000 | 2.0000 | 1.000 | .781 | 1.360 | 1.687 | .032 | 9 | 70,820 | .553 |
COMH19*** | 1.1875 | 2.3750 | 1.187 | .937 | 1.610 | 2.000 | .032 | 8.5 | 100,730 | .895 |
COMH20*** | 1.2500 | 2.3750 | 1.187 | .937 | 1.610 | 2.000 | .032 | 8.5 | 100,730 | .895 |
COMH24*** | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 2.312 | .032 | 8.5 | 135,950 | 1.358 |
COMH28*** | 1.7500 | 3.1250 | 1.562 | 1.250 | 2.110 | 2.625 | .044 | 8 | 176,370 | 1.948 |
COMH32*** | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.360 | 2.937 | .044 | 8.5 | 217,060 | 2.650 |
** BEARING COMES STANDARD WITH SNAP RING AND PTFE LINER. CONTACT FK ENGINEERING FOR FURTHER INFORMATION.
*** BORE TOLERANCE +.0025 / -.0005
(FKBCOMH24T)
SKU | FKBCOMH24T |
Brand | FK Rod End |
