32" Torsion bar Swaybar kit.

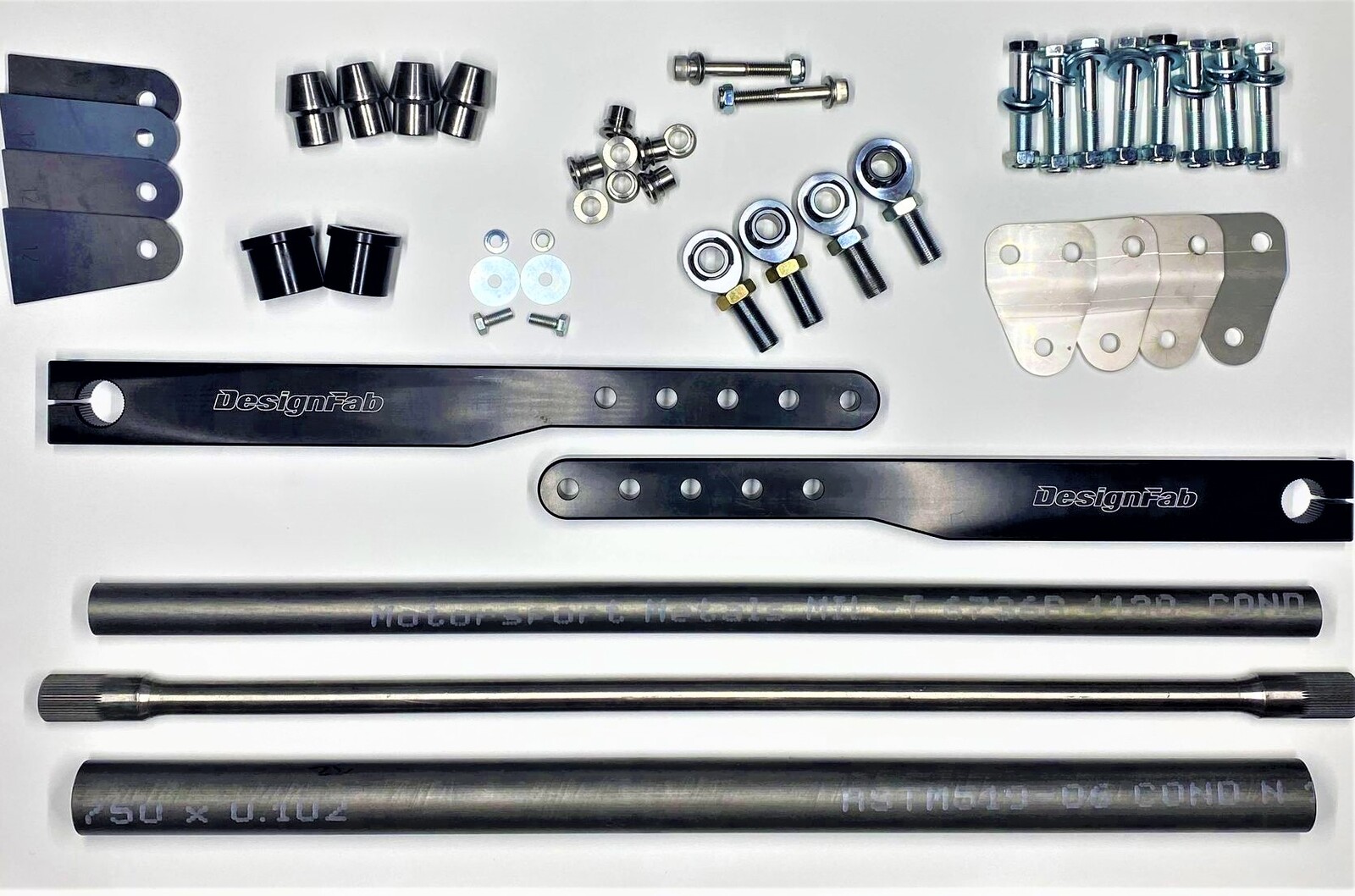

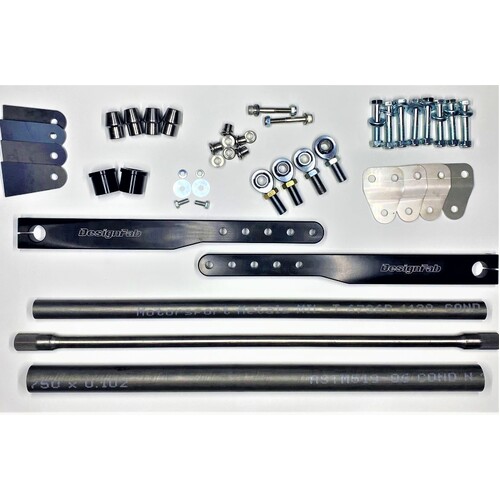

This kit comes complete with the following.
2x DFI slimline arms with design spacific heim retaining plates
1x DFI torsion bar 32"/813mm Long
4x DFI heim joints with jam nuts, spacers and bungs
1x 1.75" x .102 CDS tube to mount the torsion bar
1x 1.25" x .120 chromally tube to make custom length links
2x HDPE bush's
4x diff mounting tabs
1x Fasteners kit - includes everything needed to complete the kit.
We have put a lot of time into developing these sway bars that are manufactured, designed and tested right here in Australia. We are proud to say we are selling our own product that we designed from the ground up. After dealing with multiple failures selling the common brands we put the time, research, blood, sweat and tears into eliminating all of the flaws we found in the common designs to be able to give you what we believe to be one of the best torsion bar style sway bar kits available.

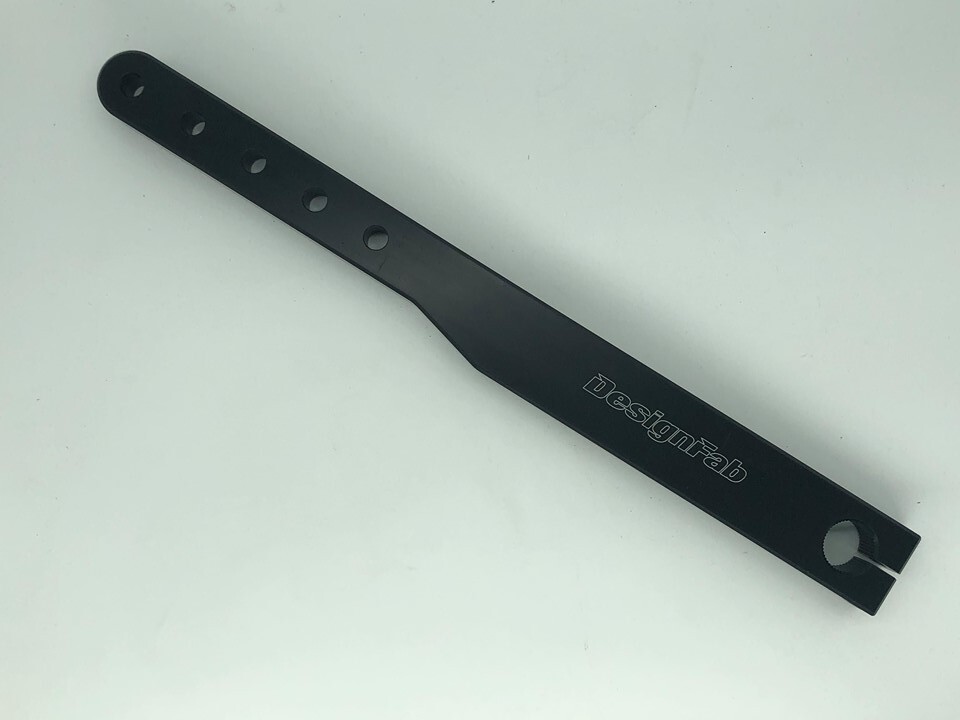

The slimline arms are designed to have a narrow profile with smooth sides to allow fitment in those tight locations where there is a chance that the tyre might have to rub on or make contact with the arm. This design is most commonly used on the rear ends of Nissan Patrols and Cruiser utes.
The offroad arm is designed to be able to handle vehicles with extreme amounts of travel and or articulation. This style of arm also allows for more adjustability.
The arms are machined using only the highest grade alloy to be able to be durable enough to handle the finer spline design our torsion bars use. This alloy is significantly stronger then 7075 and is specifically used to manufacture fasteners in the aerospace industry. This alloy is used in the Aerospace industry because of its ability to keep its strength as a fine thread under pressure like we use on the Torsion bar.
Our torsion bars took over 12 months of testing to find the perfect material. After testing 6 different materials through different levels of heat treatment. We found what we think to be the best all-around material that allows far superior twist before breakage and lack of memory. All of our torsion bars are heat treated and straightened prior to machining to insure they do not hold a case hardening that often is a cause to the failure of a lesser quality bar. We have used a much finer spline as to increase surface area and to lessen the depth of the valley of each spline being cut into the bar. This was because through our testing we found the deeper splines on the competitors torsion bars was the second highest point of failure. The spline being cut deeper than the centre working section of the torsion bar made it susceptible to cracking.
Unlike most of the commonly used torsion bars all of our bars are machined at a higher speed and slower feed rate giving the bars a much smoother finish, some of our shorter bars almost have a mirror finish. This is because we found that the lack of finish on the lesser bars was the number one cause of failure often resulting in a rotational like fracture that starts in these roughly machined surfaces.
One of the best parts about our kits is the fact that the torsion bars are made right here in Australia we can make them 100% custom to suit your needs.

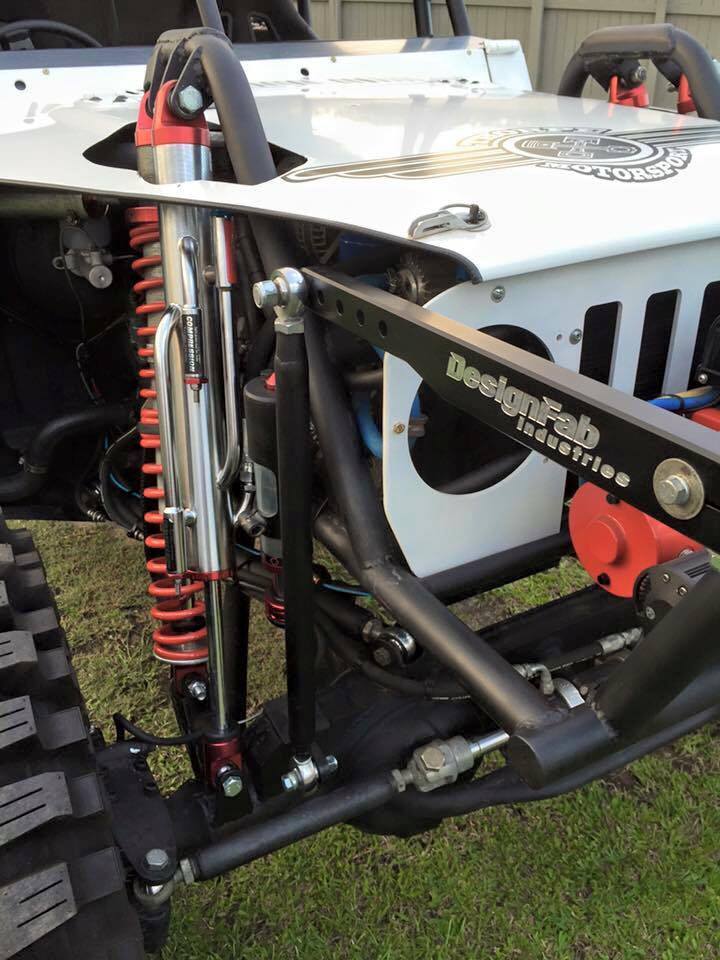

With well over 500 of our kits and counting sold in the market place we believe these sway bars can be used to make just about anything ride better. While most of our kits have found their ways on to comp trucks ranging from the top Ultra4s, rock crawlers and winch trucks there has been a fair few find their way onto fully engineered road registered cars in every state in Australia. But it doesn't stop there we have fitted these things to tradesman trailers, Drag cars, mud racers, Cam-Am's, RZR's and we have even made a extra long custom one to fit on of the top Trophy Trucks in Australia.
Like always thank you all for the support if you have any questions, please do not hesitate to ask any questions.
