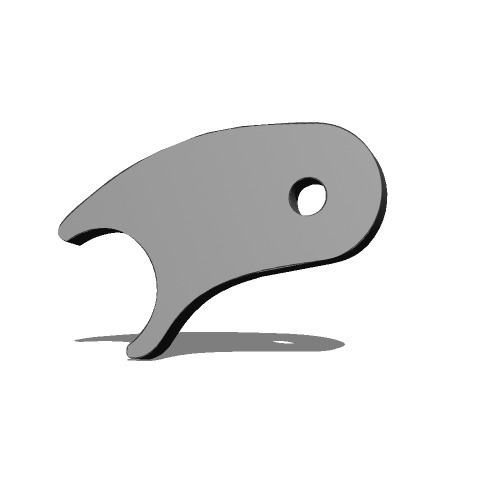

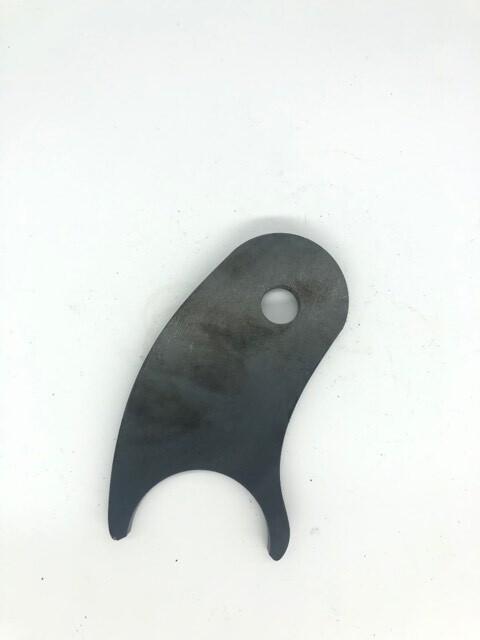

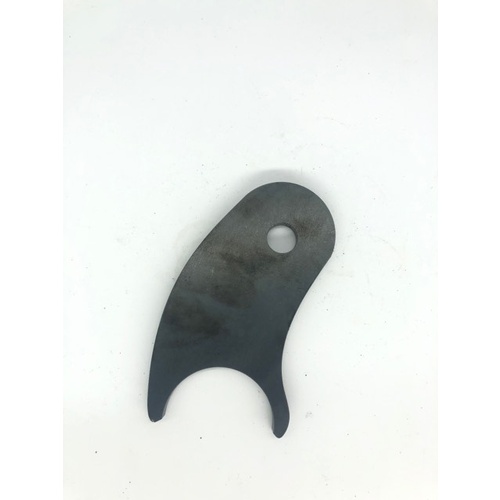

Designfab Industries has designed this tab after years of using alternate options for mounting coilovers and airshocks. After using various tabs on our own projects, we have developed a product that doesn’t need altering. These coilover tabs are designed to offer maximum clearance for the shock body without the need to attack them with a grinder. Why should you fork out your coin on a laser cut product, only to hack it away to make it fit?
Coilover shock tabs a spacificly designed for mounting shocks, coilovrs and air shocks. They have less material around the base of the bolt hole in compairison to a link tab. This is to give more clerance for the shock ends. They have a unique tear drop shape to give more clearance while still allowing you to mount the shock up next to your tube work. On heavier vehicles, builds designed for speed or endurance races we would recomend using weld on tear drop washers for added strength.
All DesignFab Industries shock Tabs are precision cut with a fiber optic CNC laser to make sure they are cut perfectly with a clean presentable finish.
Most Tabs are kept in stock on the shelf. If we are out of stock they are back in stock normally within 2 days.
All Tabs are cut from 6mm thick 250 grade mild steel unless specified otherwise.
A) 12mm Bolt Size
B) 61mm Mounting Surface to bolt Center
C) 1.75"/44mm Base
