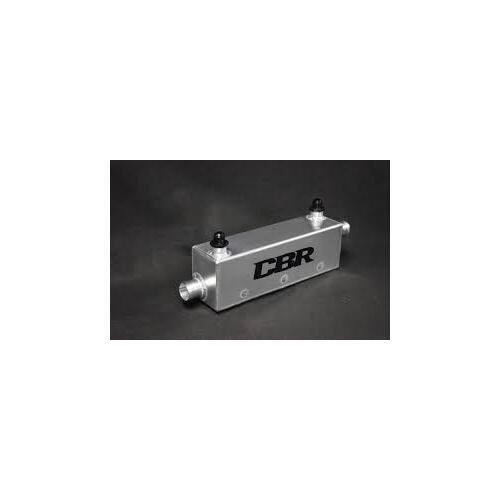

CBR 12 Plate Stainless Oil Cooler Heat Exchanger 1-3/4" Radiator In/Out AN -10 ORB Oil Cooler In/Out

CBR's "IN-LINE" oil coolers have been designed with the serious RACER in mind. These coolers consist of a complex internal core to provide high heat transfer in a low pressure drop configuration. The multi pass baffle system inside the tank allows water coolant to pass through the cooler multiple times for maximum heat transfer. These coolers are designed to run in-line with your water lines, allowing water to pass through the oil coolers.

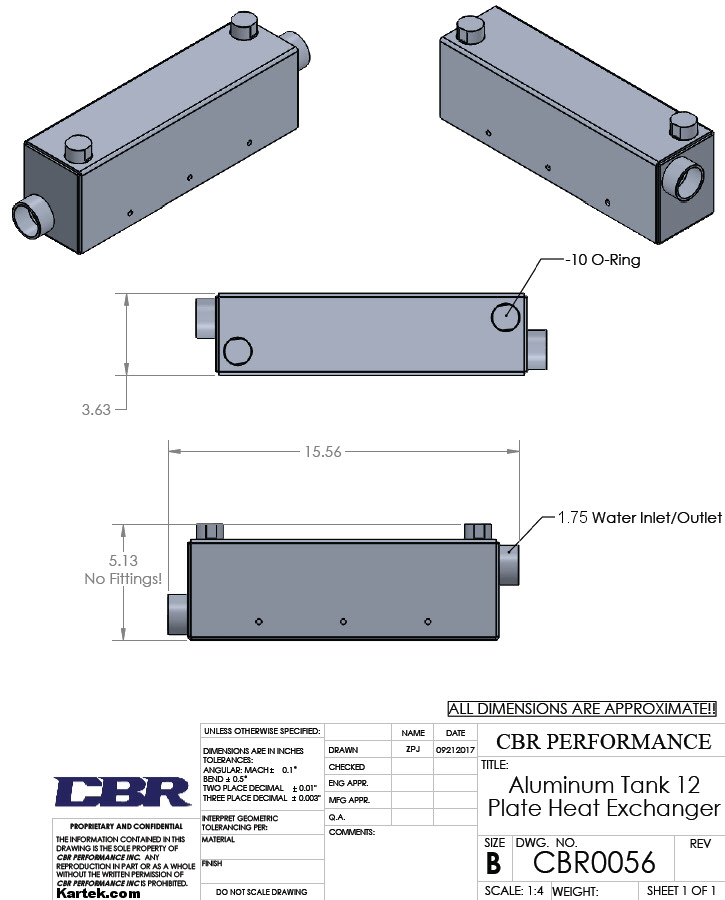

oil cooler dimensions

(CBR0056175)

SKU CBR0056175
Brand CBR
Shipping Weight 3.5000kg
Shipping Width 0.500m
Shipping Height 0.400m
Shipping Length 0.400m
Shipping Cubic 0.080000000m3
