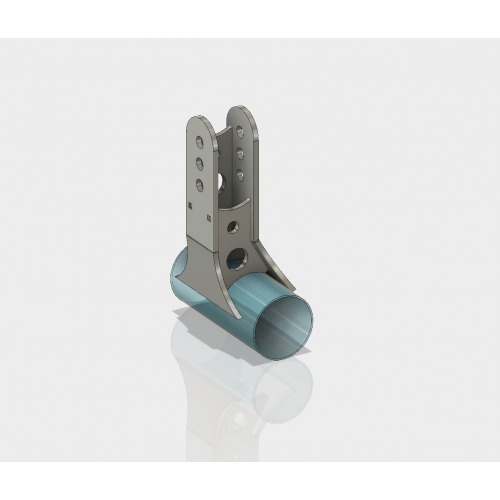

This Panhard mount is designed to be fitted on the Drivers side (Left side when standing in front of the car looking at it.) it comes with adjustment of 5", 6" and 7" separation from the axle centreline. To suit an axle tube that is 75mm (3") in diameter. (this can easily be trimmed down to suit 82mm patrol diff)

Mounting width for the panhard bar is 44.45mm (1.75" to accommodate a 3/4 heim joint with standard spacers.

Will work with left or right hand panhard bars and can be rotated around the axle tube as needed.

Bracket requires you to weld it. We have however, designed the bracket with keyways in it to help square everything up and give you true angles.

(pan-adj-Driver)

SKU pan-adj-Driver
Brand DesignFab Industries
Shipping Weight 2.1000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.240m
