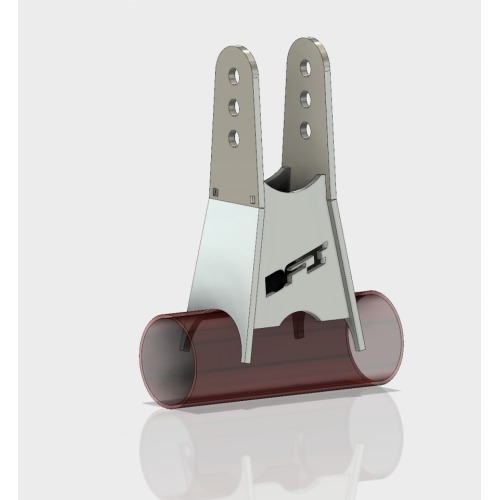

This 3-link mount comes in 2 different variations.

Small size

One is to suit a 50mm spacing being our common 3/4 and 7/8 heim with our common miss alignment spacer. This mount is cut from 6mm mild steel, Comes un-assembled and will require welding. Designed with relief cuts to not trap mud and debris in the bracket promoting rust. Bracket can be ground to fit for angular offsets. The adjustability for 7", 8", 9" Separations from center of axle tube. Axle tube diameter 75mm. Bolt hole sizes are 16mm. Precision nodes have been built into the design to offer true fitment when welding.

Large size

The second one is to suit a 67mm spacing being our common 1.25" heim or 1" uniball with our common miss alignment spacer. The side plates are cut frm 8mm mild steel and spreader plates are cut from 6mm mild steel, Comes un-assembled and will require welding. Designed with relief cuts to not trap mud and debris in the bracket promoting rust. Bracket can be ground to fit for angular offsets. The adjustability for 7", 8.5" Separations from center of axle tube. Axle tube diameter 75mm. Bolt hole sizes are 19mm. Precision nodes have been built into the design to offer true fitment when welding.



(DFI-ALT)

SKU DFI-ALT
Brand DesignFab Industries
Shipping Weight 1.8000kg
Shipping Width 0.120m
Shipping Height 0.140m
Shipping Length 0.140m
