PSC Cylinder Assist™ Steering Kit for RHD Australian 2012-18 Jeep Wrangler JK 3.6L w/ OE Front Axle 6.75" Lock-to-Lock with 1-3/8" Tie Rod Clamp
This kit has been put together and suits all 2012-2018 Jeep Wranglers (both V6 and CRD Engines) Suited to handle tires up to 37" tires and moderate to heavy offroad use. Some small modifications are needed for the factory high pressure line from pump to steering box. A small amount of welding is required to mount the assist ram. Everything else is bolt on. Estimated install time of 4-6 hours depending on experiance and skill level.
This Kit is for a Factory Dana 30 or Dana 44 (Rubicon)
KIT INCLUDES
SG684R-RH: New Factory Cylinder Assist™ Steering Gear for 2007-18 Jeep Wrangler JK/JKU ( Right Hand Drive)
CAK688R: Single Ended Steering Assist Cylinder, 1.75" Bore X 6.75" Stroke
SP33352SJP: Jeep Spacific power steering pump with 5.5" pulley installed
MB11K Upgraded pump mount
SR146-6-10: 8.25" Tall Reservoir with pump hose feed
SR-VT: Remote Reservoir Anti Splash Valve
CK215-8: Heat Sink Fluid Cooler Kit
HA-L138: Fluid Reservoir to Power Steering Pump Feed Hose
MR20K:Remote Reservoir Mounting Kit
TRCL1.25: Tie Rod Clam (This can be exchanged for a size that will suit your tie rod)
HK205: Assist Cylinder Installation Hose Kits
4x 1L Maxima Power Steering Fluid

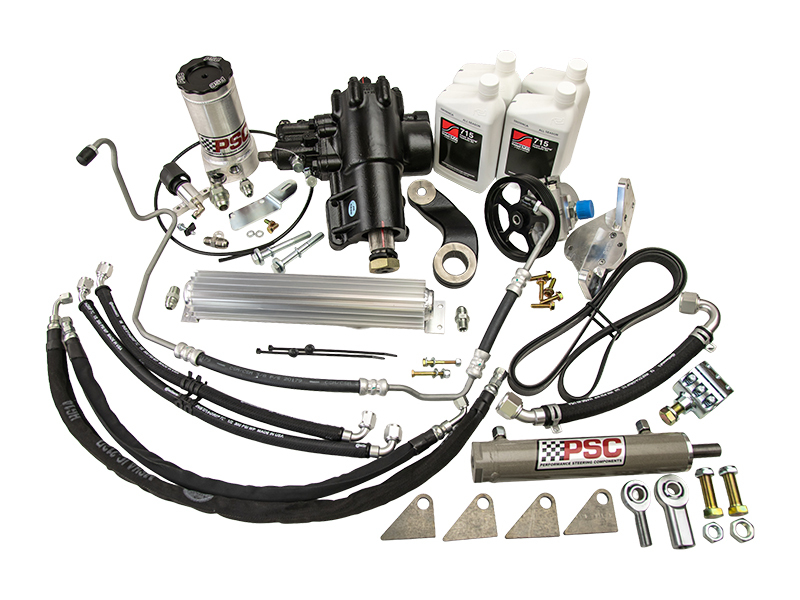

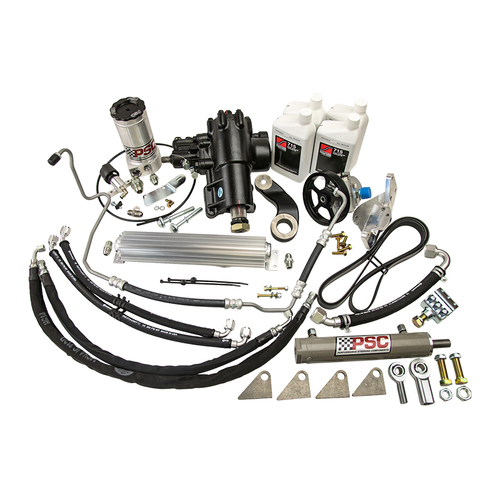

PLEASE NOTE:Picture shows High pressure line and drive belt that are only avalable for LHD models and is not included in this package.
Pitman arm shown in picture is an optional extra at $420 The Factory arm can be used.
These kits are normally kept in stock but are ordered in batchs, If we are sold out they will already be on order and on the way longest lead time is under 3 weeks.
The factory drive belt will work for 2007-2012 model JKs and for 2012-2018 you will need to buy 6PK2260 or 6PK2265 you will need to measure and check your setup, we do not supply these.
OEM high pressure line needs to be replaced due to orginal design supplied on vehicle having a plastic liner that can be displaced with the higher pressure.
Genuine OEM replacement high pressure lines manufactured after 2020 no longer have this plastic liner and can be used with a slight modification to clear pulley, your other option is to modify the orginal hose to replace the flexible section of the high pressure line this will done by hydraulic expert.
(PSC-JK-AU-KIT)
SKU | PSC-JK-AU-KIT |
Brand | PSC Motorsports |
Shipping Weight | 18.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.500m |
Shipping Length | 0.500m |
Shipping Cubic | 0.125000000m3 |
