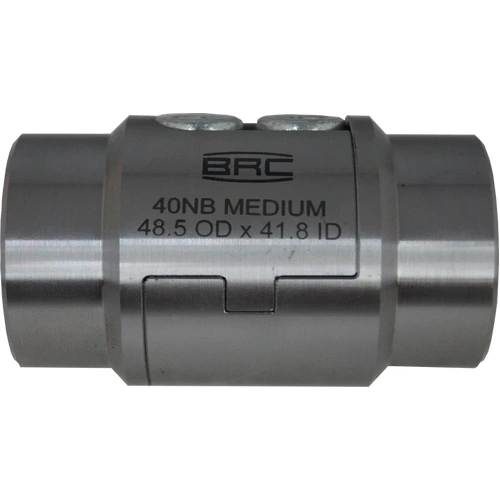

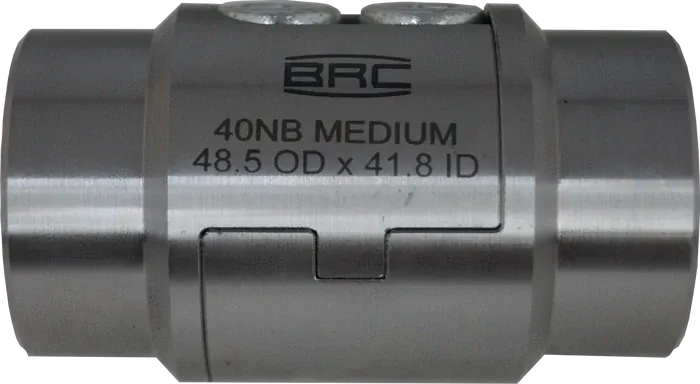

1 x TUBE JOINER
Suits TUBE: 40mm Nominal Bore.
40NB X 3.2 WALL
DIAMETER 41.8mm ends WHERE IT FITS INSIDE YOUR 3.2mm WALL PIPE.
Made from Mild Steel.

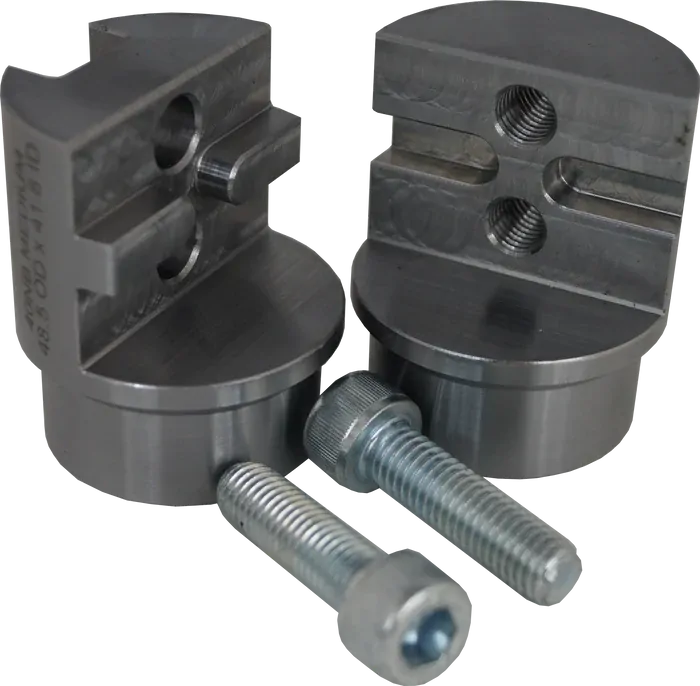

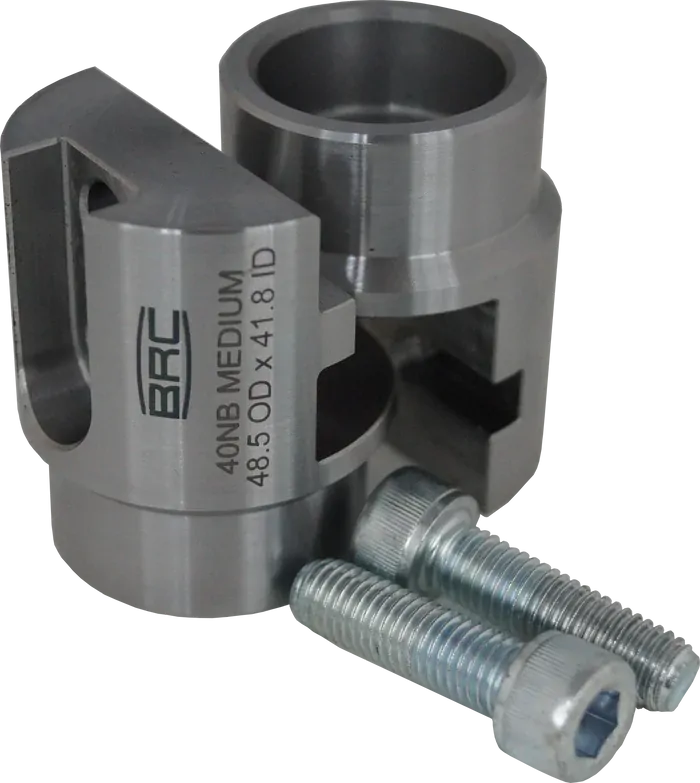

1 x Female Half
1 x Male Half
2 x M10 Grade 12.9 Bolts

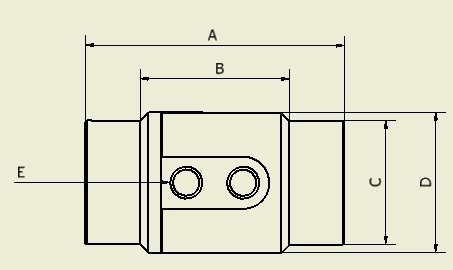

OUTSIDE DIAMETER: D = 48.5mm
PIPE INSIDE DIAMETER/DIAMETER OF ENDS OF JOINERS : C = 41.8mm
These are most often used in external Scrub Bars on off road vehicles. Easy to use and the 40NB pipe is readily available.
Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a safety cage.
Although a similar design and steel as approved joints, the 40NB has not been tested by any certified lab and is not approved for use in a safety cage designed to protect the occupants.
|Brand||Billet Race Craft|
