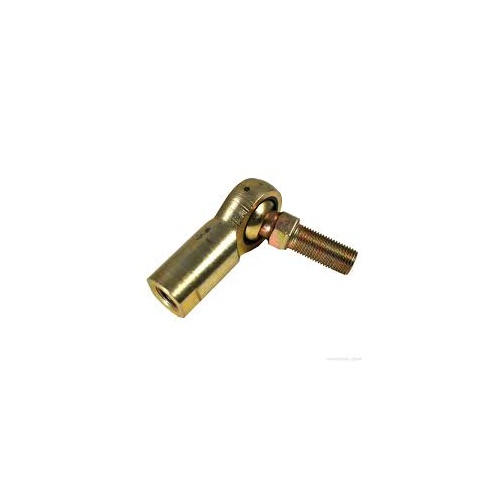

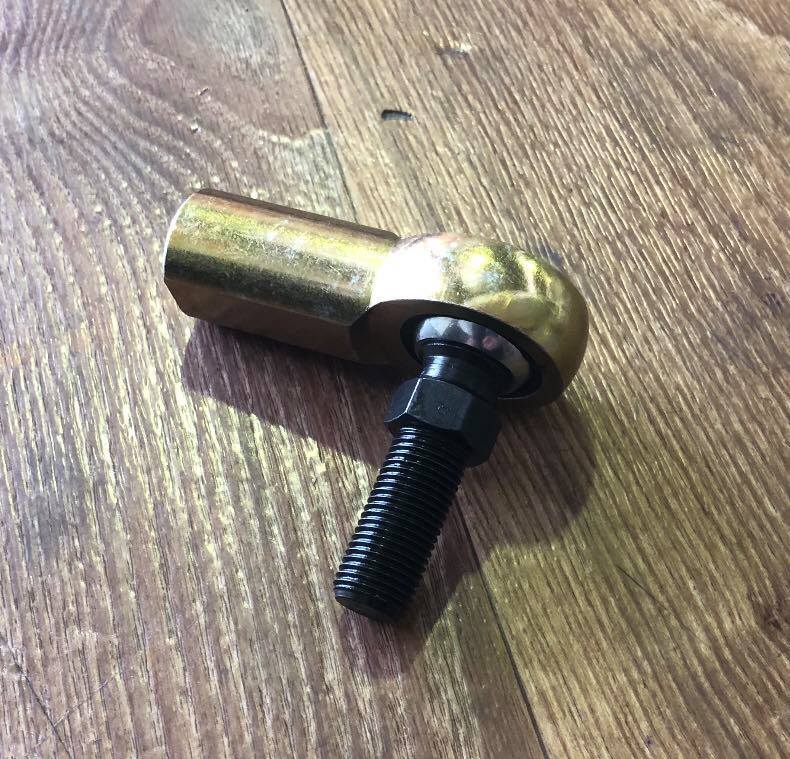

This right hand rod end comes with a low carbon steel, zinc plated yellow and dichromate treated body.

It also has a self lubricating, reinforced nylon and moulded race.

These are direct replacements for the Currie sway bar link ends

Product Specifications

  • Part No.: SPF8S
  • Description: Rod End, Right Hand, Female
  • Detail: Moulded Race, Self Lubricating, Studded Configuration
  • Ball Bore: .5000
  • Ball Width: .625
  • Housing Width: .500
  • Centreline Length: 2.125
  • Head Diameter: 1.312
  • Shank Diameter: .875
  • Wrench Flat Width: .750
  • Wrench Flat Length: .375
  • Ball Diameter: .938
  • Min. Thread Length: 1.000
  • Thread Size: 1/2-20
  • Ultimate Radial Static Load Capacity (Pounds): 6430

MATERIALS:

Ball: Low Carbon Steel, Case Hardened, Zinc Plated, Yellow, Dichromate Treated

Body: Low Carbon Steel, Zinc Plated, Yellow, Dichromate Treated

Race: Moulded, Self Lubricating, Reinforced Nylon

(DFI-SPF8S)

SKU DFI-SPF8S
Brand Designfab Industries
Shipping Weight 0.4000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
