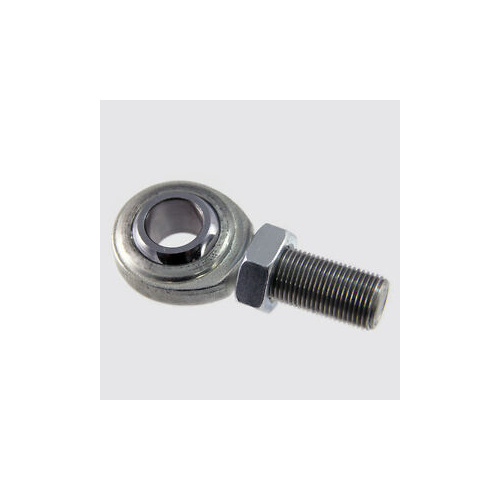

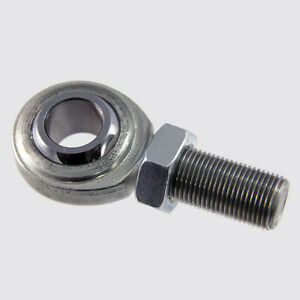

CM 2-piece economy male joints have 2 components; the ball and the body. Like all our joints these are always supplied with a jam nut The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Carbon Steel. These joints are ideal for use in areas which do not have a large force present or for gear/throttle linkages or where vibration may be heavy at the ball. These are commonly used on industrial equipment. These joints should be kept lubricated.


BALL:  52100 Bearing Steel  ~  Heat Treated  ~  Hard Chrome Plated  ~  Precision Ground

BODY:  Carbon Steel ~  Heat treated  ~  Protective Coated for Corrosion Resistance

EXCLUSIVE FEATURES:  High Misalignment  ~  Cost Effective



(DFI-CM8)

SKU DFI-CM8
Brand DesignFab Industries
Shipping Weight 0.1500kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
