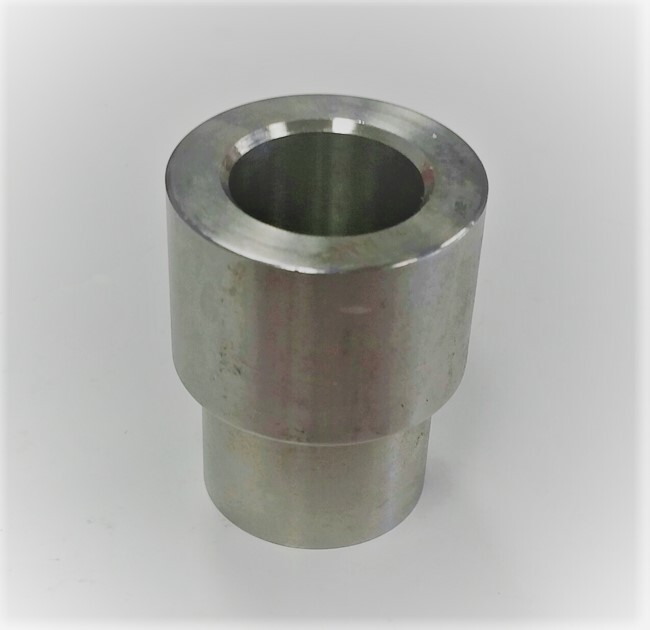

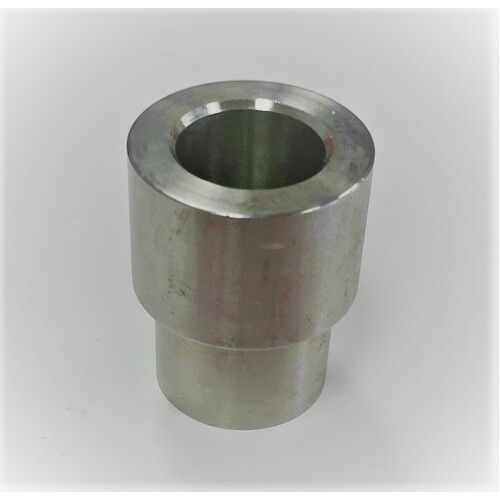

ven though this was designed specifically for our Wobble Stopper, it will fit any standard 1" rod end as well. Straight spacers are designed for suspension joints, steering tie rod ends and anything else that uses the pivot of a spherical bearing such as heim joints, rod ends and uniballs where a lot of angle isn't required unlike a high misalignment spacer. They reduce the hole size to accommodate a smaller bolt.

We offer a wide variety of high misalignment spacers and straight spacers for almost every possible application.


Important Notes:
  • Not all spacers will fit every uniball or heim joint.
  • The stack height or width in the title of the page is a nominal dimension. See below for actual decimal dimension.
Specifications:
  • Material: 17-4 Heat treated stainless steel
  • (A) Shoulder Height: 0.835"
  • (B) Head Diameter: 1.240"
  • (C) Half The Stack Height: 1.520"
  • Nominal Stack Height: 3-1/16"
  • Actual Stack Height: 3.040"
  • (D) Bolt Size: 3/4"
  • (E) Heim Or Uniball Size: 1"
  • (F) Depth: 0.6875"
How to measure misalignment spacers for fk rod ends aurora bearing company and nhbb new hampshire ball bearing

Stack height or stack width, depending on which way you look at it, is an important dimension for you to know for the length of the bolt you'll need plus the gap that you'll need in order to put the rod end or uniball on your vehicle.

We sell the spacers individually because occasionally customers will use two different heights of spacers on one rod end or uniball to achieve the stack height required for their vehicle.

Will Fit:
  • Aurora Bearing Company
  • FK Rod Ends
  • NHBB New Hampshire Ball Bearings
Stack height or width

(DFIHMS-1-19-77)

SKU DFIHMS-1-19-77
Brand Designfab Industries
Shipping Weight 0.0900kg
Shipping Width 0.020m
Shipping Height 0.010m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
