All Wilwood products are an order in item unless otherwise stated. Most lead times are 4 to 12 days.

Manufacturer's Part Number: 120-13428-RD

Link to Full Specs on Caliper: Layout 1 (wilwood.com)

Part Type: Brake Calipers

Product Line: Wilwood Forged DynaPro 6A Lug Mount Calipers

Part Number: WIL-120-13428-RD

Caliper Series: DynaPro 6A Lug Mount

Caliper Piston Quantity: Six

Piston Diameter (in.): 1.620/1.380/1.380

Rotor Thickness (in.): 0.810 in.

Caliper Material: Aluminum

Caliper Color: RED

Caliper Logo: Wilwood

Parking Brake Provision: No

Fittings Included: No

Thread Size: 1/8 in. NPT

Brake Pads Included: No

Brackets Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: Accepts up to 13 in. rotor diameter.

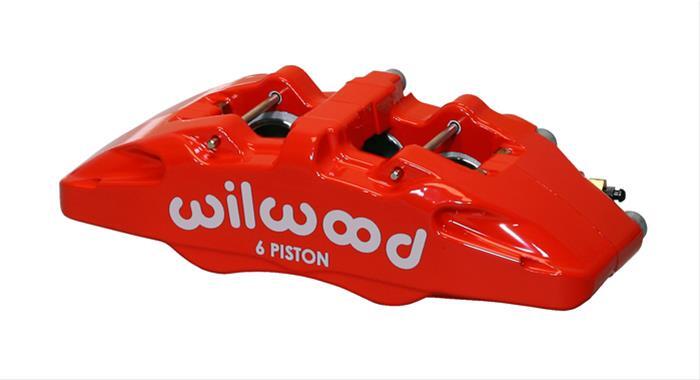

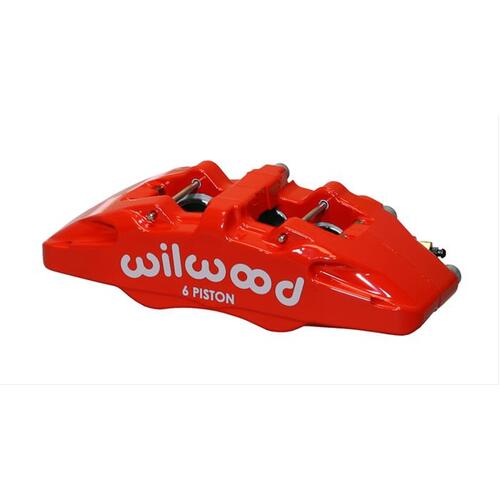

Wilwood Forged DynaPro 6A Lug Mount Calipers

Wilwood forged DynaPro 6A lug-mount calipers combine pure-bred racing technology with contemporary design—to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. They feature reinforced triple bridge construction, with five high-strength steel bridge bolts, making them the strongest and stiffest DynaPro 6 calipers ever built. These replacements offer direct interchange with a 5.25 in. pattern lug mount DynaPro and Dynalite calipers.

Additional information:

* Forged aluminum caliper material
* Six-piston differential bore body
* Stainless steel pistons with high-temperature seals
* Accommodate rotors up to 13 in. diameter and widths from .38 in. to 1.10 in.
* Available in or red or black powdercoat, or Quick-Silver nickel base plated finish

Forged Dynapro 6A Lug Mount

Wilwood's DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25” pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13”inch diameter and widths from .38” to 1.10”. DP6A calipers are available in gloss black or red powder coat or Type III Anodize.
