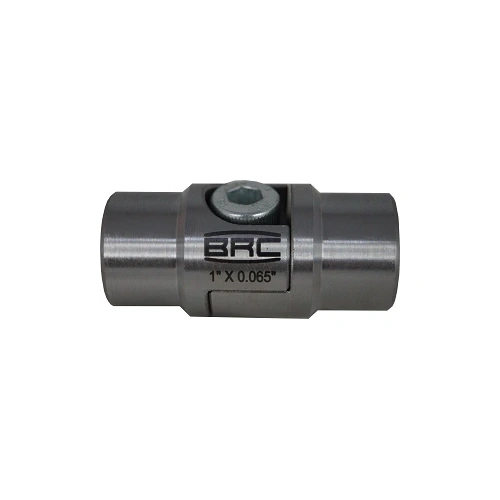

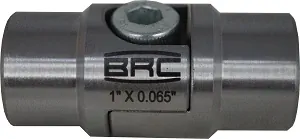

1 x TUBE JOINER
Suits TUBE: 1" TUBE x 0.065" Wall. (25.4mm x 1.6mm wall)

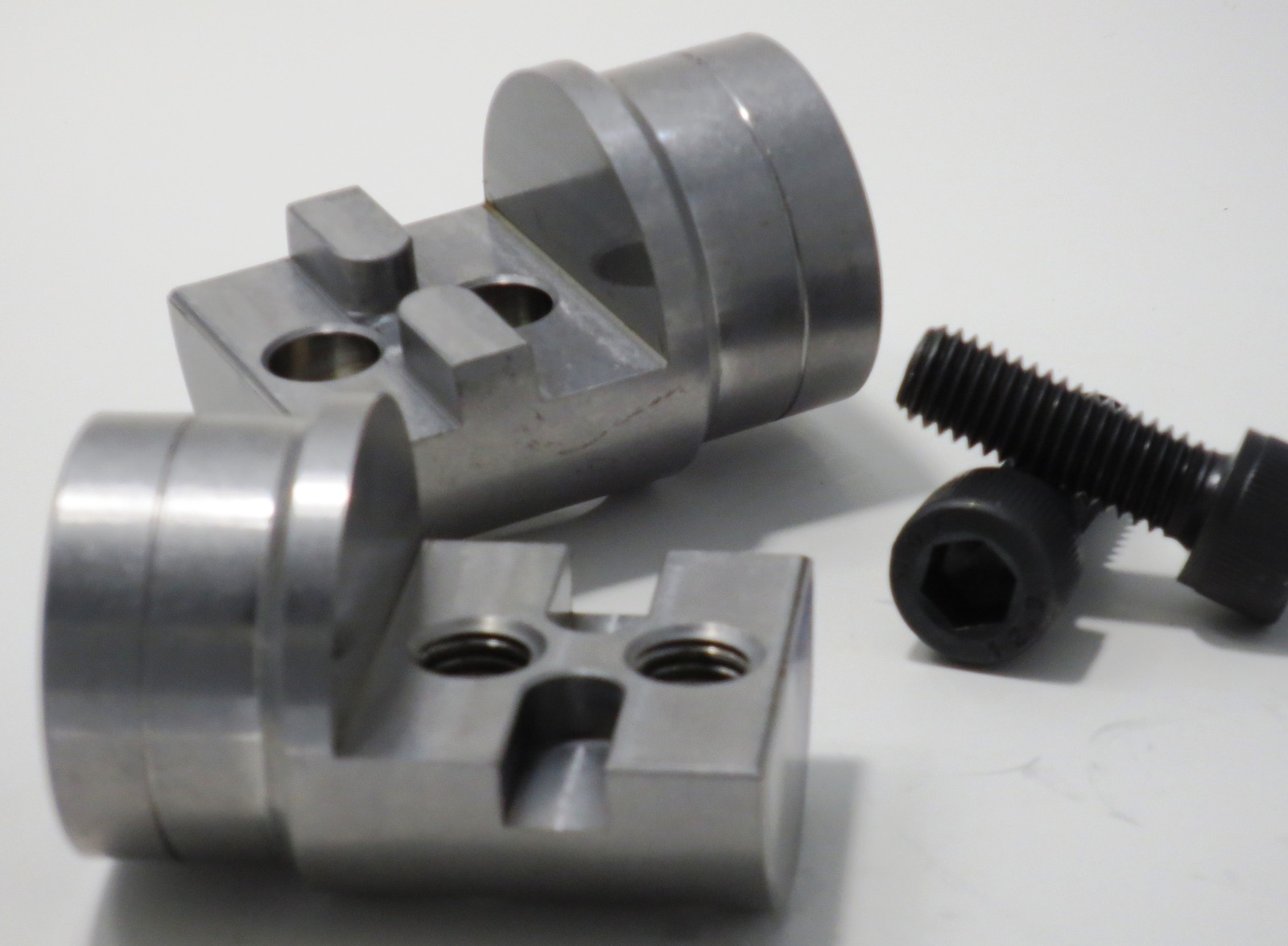

1 x Female Half
1 x Male Half
1 x M8 Grade 12.9 Bolts



Made from CS1020 Mild STEEL

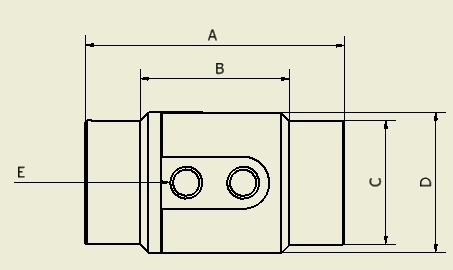

A=52 B=26.5mm C=22.1mm D=25.4 (1") Weight With Bolt = 0.13Kg






IMPORTANT LEGAL and SAFETY CONSIDERATIONS:
Even though we may call these "roll cage joiners", we have not had them tested or approved by any qualified engineers or testing authority. You must decide if these couplings suit your application. Not recommended for main structures to protect vehicle occupants.

*NOT approved by CAMS for occupant roll over protection - see section J of the CAMS manual.

(BRC-1-x0.065)

SKU BRC-1-x0.065
Brand Billet Race Craft
Shipping Weight 0.5500kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
