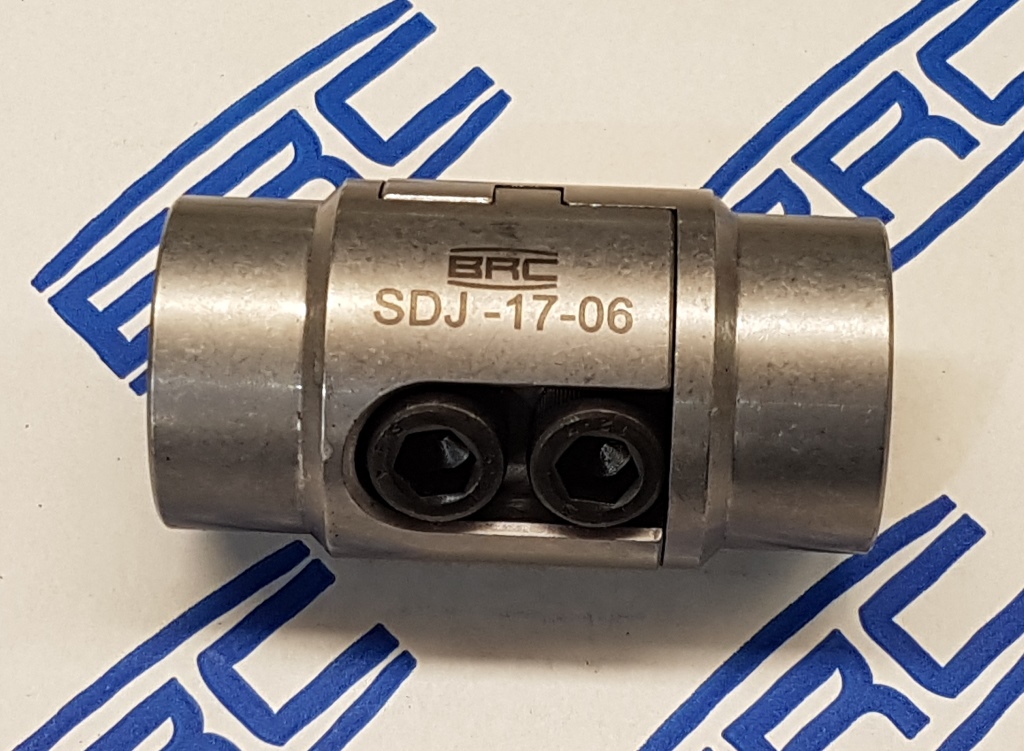

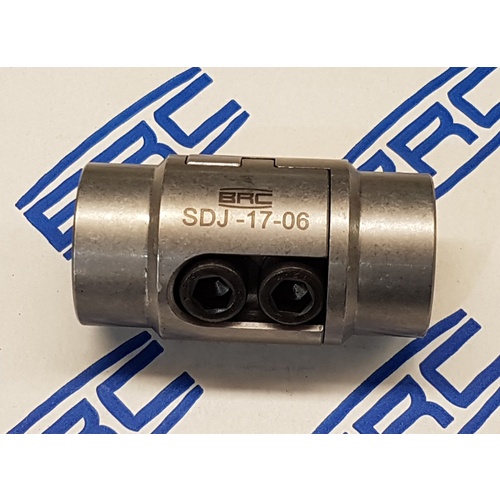

1 x TUBE JOINER

Suits TUBE: 1.3/4″ O.D. x 0.102″ Wall.

Made from CS1020 Steel.

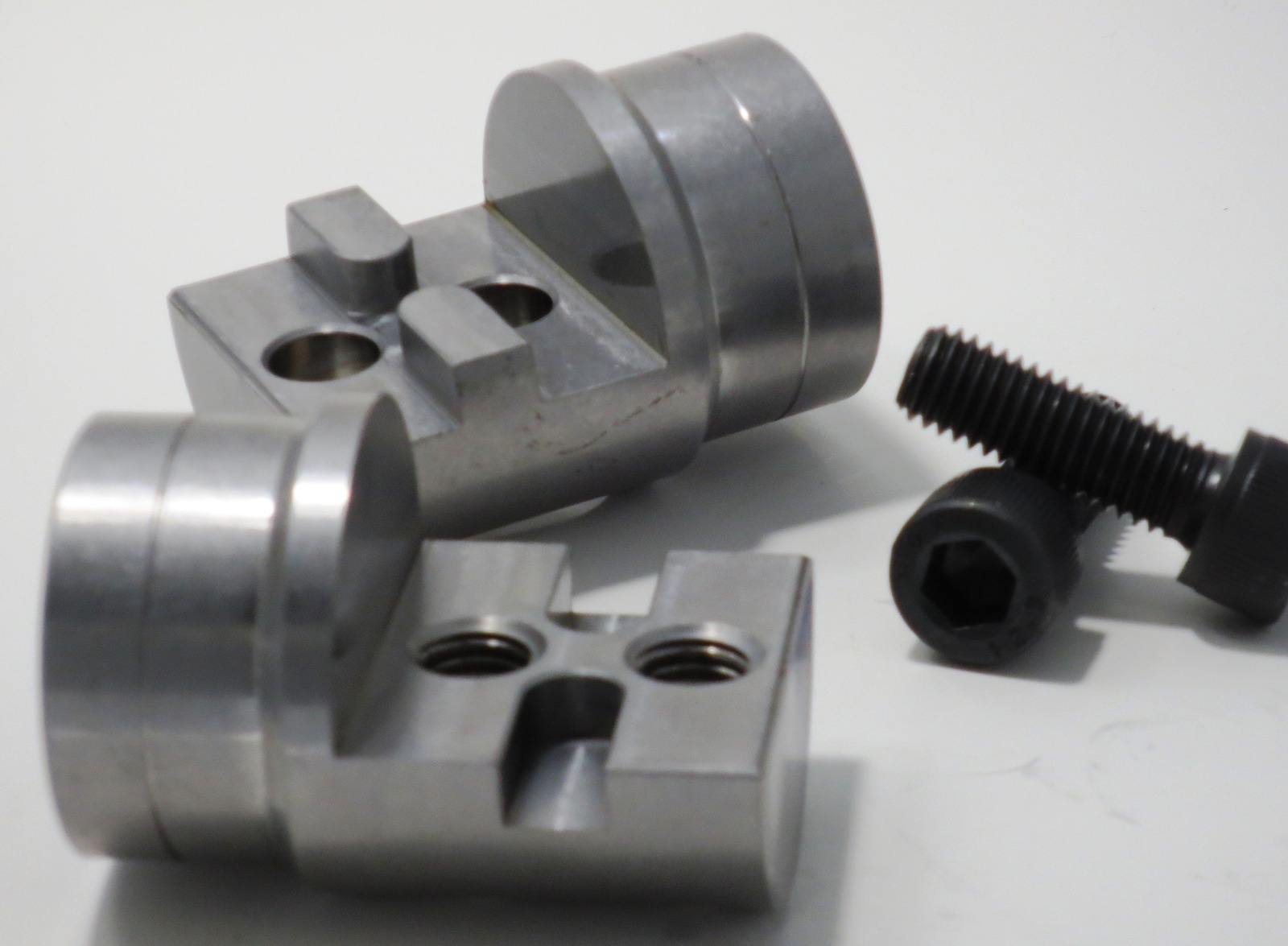

1 x Female Half

1 x Male Half

2 x M10 Grade 12.9 Bolts

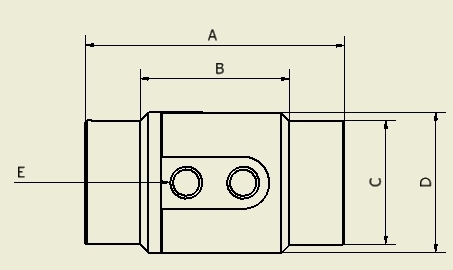

Dimensions: A=82 B=46mm C=39.2mm D=44.4 (1.750″) Weight With Bolts = 0.7Kg

IMPORTANT LEGAL and SAFETY CONSIDERATIONS

Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a
safety cage, only that it meets the load requirements specified in:
2017 FIA Homologation Regulations For Safety Cages.

CAMS HOMOLOGATION # SDJ-17-06

(BRC-SDJ-17-06)

SKU BRC-SDJ-17-06
Brand Billet Race Craft
Shipping Weight 0.5500kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
