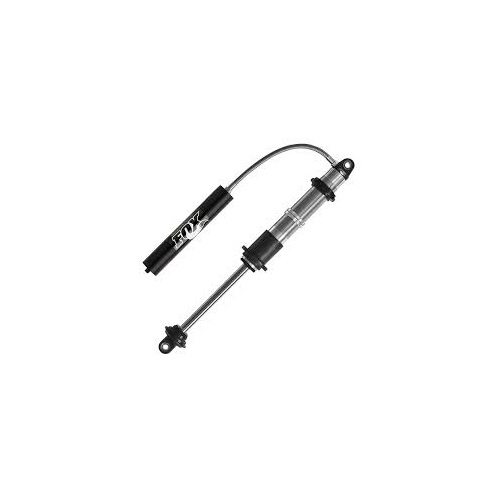

Fox Racing Shocks 2" Coil Over Body 14" Stroke 7/8" Diameter Shaft With Hose Remote Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.

2.0 FACTORY RACE SERIES COIL-OVER

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.




FAMILY FEATURES

Body Smooth bore and honed seamless steel
Body Plating Zinc plated for a long-lasting finish
Components Black anodized, CNC machined 6061-T6 billet aluminum
Piston 7075 hard-anodized high-flow aluminum piston*
Valving Tunable, velocity sensitive deburred valve shims
Hose Reusable ORB O-ring port hose fittings for superior seal with remote reservoirs
Seals High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal*
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Shafts 7/8" 17-4 H900 hard chrome plated stainless steel, hard chrome plated*
Bearing Spherical, PFTE-lined, heat-treated alloy steel
Adjustments
  • RRB (Rotating Reservoir Bridge)
  • Spring preload ring
  • Dual stage crossover ring
  • Compression valving
  • Rebound valving
  • Optional DSC Adjuster

Would you like a 90 degree fitting on the body cap? Additional cost of $20.00 per shock:

Would you like a DSC compression adjuster installed? Allows compression adjustment of the Fox shock without having to take the shock apart and change the valving. Additional cost of $550.00 per shock:

PLEASE NOTE Most shocks are imported at time of order. Avarage lead time is under 3 weeks.
Yes
No
No
Yes


(FOX98002012)

SKU FOX98002012
Brand Fox
Shipping Weight 12.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 1.000m
Shipping Cubic 0.062500000m3
