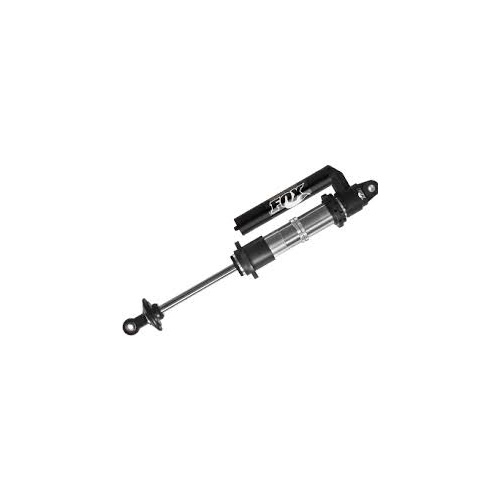

Fox Racing Shocks 2" Coil Over Body 12" Stroke 7/8" Diameter Shaft With Piggy Back Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
2.0 FACTORY RACE SERIES COIL-OVER
Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
||Smooth bore and honed seamless steel
||Zinc plated for a long-lasting finish
||Black anodized, CNC machined 6061-T6 billet aluminum
||7075 hard-anodized high-flow aluminum piston*
||Tunable, velocity sensitive deburred valve shims
||Reusable ORB O-ring port hose fittings for superior seal with remote reservoirs
||High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal*
||JM92 Advanced Suspension Fluid for improved performance at variable temperatures
||7/8" 17-4 H900 hard chrome plated stainless steel, hard chrome plated*
||Spherical, PFTE-lined, heat-treated alloy steel
- RRB (Rotating Reservoir Bridge)
- Spring preload ring
- Dual stage crossover ring
- Compression valving
- Rebound valving
- Optional DSC Adjuster
Would you like a DSC compression adjuster installed? Allows compression adjustment of the Fox shock without having to take the shock apart and change the valving. Additional cost of $350.00 per shock:
PLEASE NOTE Most shocks are imported at time of order. Avarage lead time is under 3 weeks.
