Note: When Fox switched from steel reservoirs to aluminum on their 2.0" shocks, all of the internal parts remained the same because the aluminum reservoir has the same inside diameter as the steel reservoir. The only difference, is the aluminum reservoir has a larger outside diameter than the steel. This piston will work in either reservoir.

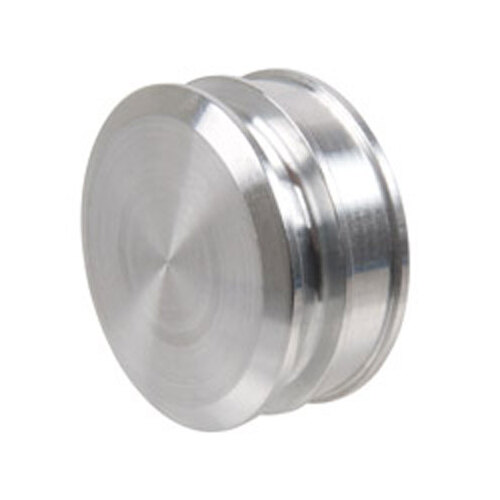

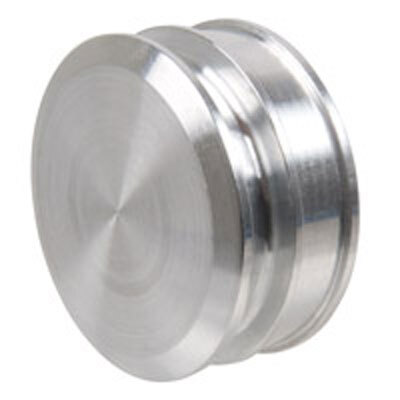

This aluminum piston is threaded 1/4"-20 coarse thread, allowing you to set the depth and also purge out any air by plunging the piston in and out of the reservoir during assembly.

Uses wear band number: 002-00-000-A
Uses o-ring number: 029-00-324

All German Motorsports shock reservoir IFP internal floating piston depth tool provides a quick and accurate method of measuring and setting the shock reservoir piston depth during service. The tool is an excellent way to monitor and prevent possible piston movement while bleeding air from your shock. Its heavy duty construction ensures proper function and long life. Works on all major reservoir brands and lengths that are threaded 1/4-20 such as Fox Shocks.

(FOX223-00-003A)

SKU FOX223-00-003A
Brand Fox
