• 3-PIECE CONSTRUCTION
  • HIGH STRENGTH – HEAVY DUTY SHANK
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING
  • FOR LOAD RATING WITH LUBRICATOR, PLEASE CONTACT FK ENGINEERING
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • ALLOY STEEL
    • HEAT TREATED
    • ZINC PLATED
    • CHROMATE TREATED
  • RACE
    • ALLOY STEEL
    • HEAT TREATED
    • ZINC PLATED
    • CHROMATE TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
a Mis
Angle
ULT Static
Radial Load
Approx
Weight
    +.0015
-.0005
+.010
-.010
+.005
-.005
+.005
-.005
REF +.015
-.015
UNF
3A
+.062
-.031
REF (lbs) (lbs)
RSMX4 RSMXL4 .2500 .875 .375 .281 .500 1.875 5/16-24 1.250 13 8.471 .07
RSMX5 RSMXL5 .3125 1.000 .437 .344 .625 1.938 3/8-24 1.250 12 13,012 .11
RSMX6 RSMXL6 .3750 1.125 .500 .406 .719 2.125 7/16-20 1.375 10 17,610 .16
RSMX7 RSMXL7 .4375 1.312 .562 .437 .812 2.438 1/2-20 1.500 12 23,470 .25
RSMX8 RSMXL8 .5000 1.500 .625 .500 .937 2.625 5/8-18 1.625 10 31,420 .38
RSMX10-8 RSMXL10-8 .5000 1.750 .750 .562 1.125 2.875 3/4-16 1.750 13 40,590 .38
RSMX10 RSMXL10 .6250 1.750 .750 .562 1.125 2.875 3/4-16 1.750 13 40,590 .60
RSMX12 RSMXL12 .7500 2.000 .875 .687 1.312 3.375 7/8-14 1.875 12 55,696 .92
RSMX14T* RSMXL14T* .8750 2.312 .875 .765 1.375 3.800 1-14 2.375 12 63,096 1.30

* RACE IS 17-4PH STAINLESS STEEL, HEAT TREATED / BALL IS 440C STAINLESS STEEL OR 52100 STEEL (HEAT TREATED) – MANUFACTURER’S OPTION

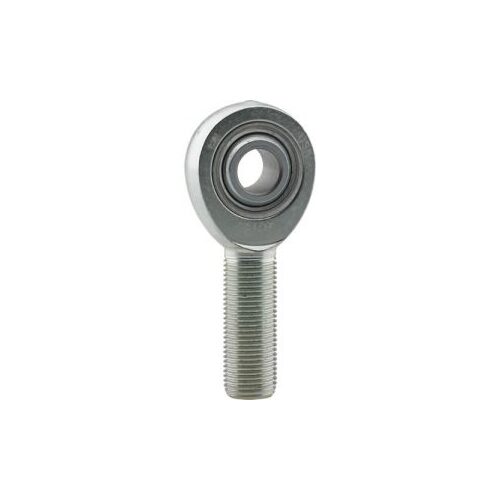

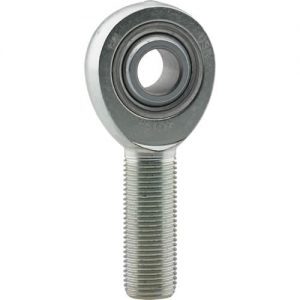

(FKBRSMX12T)

SKU FKBRSMX12T
Brand FK Rod End
Shipping Weight 0.7000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.040m
Shipping Cubic 0.000480000m3
