• HEAVY DUTY PRECISION SERIES
  • LUBRICATION GROOVE AND HOLES IN ID & OD OF RACE
  • PTFE LINER AVAILABLE (SUFFIX “T”)
  • EXAMPLE: AIN12T
  • PARTS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • RACE
    • ALLOY STEEL
    • HEAT TREATED
    • OIL COATED
BEARING
PART
NUMBER
B
DIA
D
DIA
W
WTH
T
WTH
O
DIA
BALL
DIA
F
CHAMFER
a MIS
ANGLE
ULT STATIC
RADIAL
LOAD
APPROX
WEIGHT
  +.0015
-.0005
+.0000
-.0007
+.005
-.005
+.005
-.005
REF. REF. REF. REF. (lbs) (lbs)
AIN3 .1900 .5312 .312 .250 .307 .437 .020 10.5 6,550 .016
AIN4 .2500 .6094 .375 .281 .331 .500 .020 14.5 8,427 .023
AIN5 .3125 .7500 .437 .344 .448 .625 .020 11.0 12,912 .039
AIN6 .3750 .8437 .500 .406 .516 .719 .020 9.5 17,512 .059
AIN7 .4375 1.0000 .562 .437 .587 .812 .020 11.0 21,290 .079
AIN8 .5000 1.0937 .625 .500 .699 .937 .020 9.5 28,110 .110
AIN10 .6250 1.3125 .750 .562 .839 1.125 .030 12.0 37,930 .165
AIN12 .7500 1.5000 .875 .687 .978 1.312 .030 10.0 48,675 .252
AIN14 .8750 1.5000 .875 .687 .978 1.312 .030 6.0 48,675 .248
AIN14T-770 .8750 1.6250 .875 .750 1.061 1.375 .035 6.0 58,650 .350
AIN16 1.0000 2.1250 1.375 1.000 1.275 1.875 .060 15.0 90,000 .788

(FKBAIN8T)

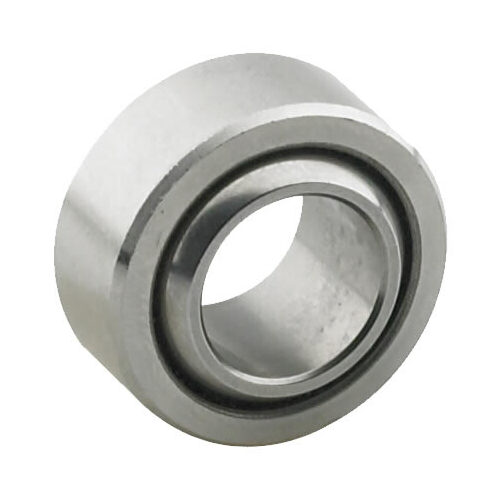

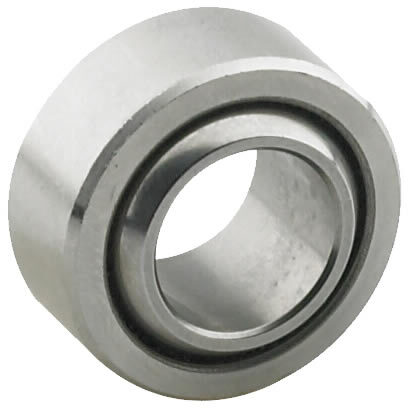

SKU FKBAIN8T
Brand FK Rod End
Shipping Weight 0.1000kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
