• BALL
    • 52100 STEEL
    • HEAT TREATED
    • HARD CHROME PLATED
  • BODY
    • 4340 STEEL
    • HEAT TREATED
    • CHROMATE TREATED
  • RACE
    • ALLOY STEEL
    • ZINC PLATED
    • CHROMATE TREATED
  • LINER
    • PTFE FABRIC
Right Hand
Part #
Right Hand
Part #
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
O
DIA
a Mis
Angle
ULT Static
Radial Load
Approx
Weight
    +.0015
-.0005
+.010
-.010
+.005
-.005
+.005
-.005
REF. +.015
-.015
UNF
3A
+.062
-.031
REF. REF. (lbs) (lbs)
HRSMX4T HRSMXL4T .2500 1.025 .593 .265 .593 1.938 3/8-24 1.187 .390 23 10,790 .12
HRSMX5T HRSMXL5T .3125 1.150 .813 .355 .781 2.125 7/16/20 1.281 .512 22 11,789 .16
HRSMX6T HRSMXL6T .3750 1.150 .813 .355 .781 2.125 7/16-20 1.281 .512 22 11,789 .15
HRSMX7T HRSMXL7T .4375 1.337 .875 .355 .875 2.438 1/2-20 1.468 .618 21 17,100 .24
HRSMX8T HRSMXL8T .5000 1.525 .937 .411 1.000 2.625 5/8-18 1.562 .730 19 23,703 .39
HRSMX10T HRSMXL10T .6250 1.775 1.200 .577 1.250 2.875 3/4-16 1.687 .856 19 32,100 .60
HRSMX12T HRSMXL12T .7500 2.025 1.280 .630 1.375 3.375 7/8-14 2.000 .970 18 38,701 .89

(FKBHRSMX10T)

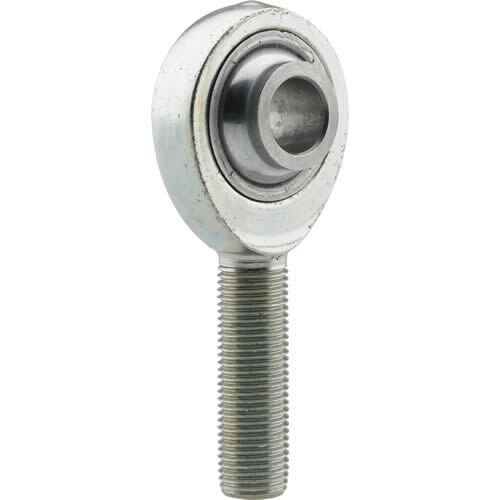

SKU FKBHRSMX10T
Brand FK Rod End
Shipping Weight 0.3500kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
