• 3-PIECE CONSTRUCTION
  • IMPORTED
  • NYLON RACE SERIES
  • LOADER SLOT DESIGN
  • STUDS AVAILABLE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • ALLOY STEEL
    • HEAT TREATED
    • CHROME PLATED
  • RACE
    • NYLON 10 OR EQUIVALENT
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
a Mis
Angle
ULT Static
Radial Load
Approx
Weight
    +.0025
-.0005
+.010
-.010
+.005
-.005
+.005
-.005
REF +.015
-.015
UNF
3A
+.062
-.031
REF (lbs) (lbs)
KMX5 KMXL5 .3125 .875 .437 .344 .625 1.875 5/16-24 1.250 14 7,600 .07
KMX6-5 KMXL6-5 .3125 1.000 .437 .344 .625 1.938 3/8-24 1.250 14 7,600 .07
KMX6 KMXL6 .3750 1.000 .500 .406 .719 1.938 3/8-24 1.250 12 9,500 .11
KMX8 KMXL8 .5000 1.312 .625 .500 .937 2.438 1/2-20 1.500 12 12,696 .24
KMX10-8 KMXL10-8 .5000 1.500 .625 .500 .937 2.625 5/8-18 1.625 12 19960 .36
KMX10 KMXL10 .6250 1.500 .750 .562 1.125 2.625 5/8-18 1.625 16 14,480 .36
KMX12-8 KMXL12-8 .5000 1.750 .750 .562 1.125 2.875 3/4-16 1.750 14 23,256 .57
KMX12-10 KMXL12-10 .6250 1.750 .750 .562 1.125 2.875 3/4-16 1,750 14 23,256 .57
KMX12 KMXL12 .7500 1.750 .875 .687 1.312 2.875 3/4-16 1.750 14 23,192 .57
KMX14 KMXL14 .8750 2.000 .875 .770 1.375 3.375 7/8-14 2.000 12 45,051 .88
KMX14-12 KMXL14-12 .7500 2.000 .875 .687 1.312 3.375 7/8-14 1.875 12 43,485 .88
KMX16 KMXL16 1.000 2.750 1.375 1.000 1.875 4.125 1.250-12 2.125 17 76,200 2.41

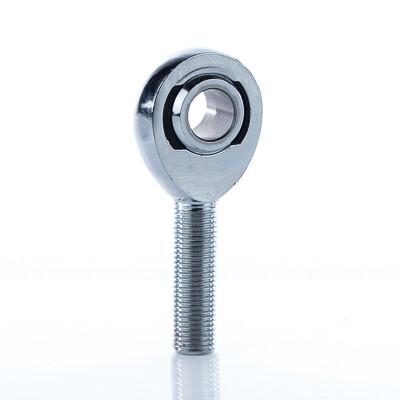

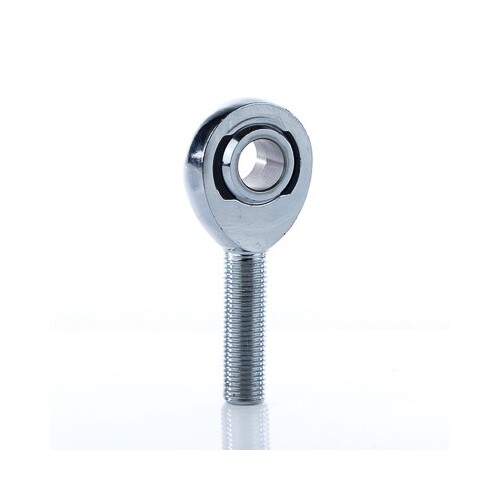

(FKBKMX14)

SKU FKBKMX14
Brand FK Rod End
Shipping Weight 0.7000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.040m
Shipping Cubic 0.000480000m3
