• 3-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING
  • FOR LOAD RATING WITH LUBRCATOR, CONTACT FK ENGINEERING
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY AND RACE
    • ALLOY STEEL
    • HEAT TREATED
    • ZINC PLATED
    • CHROMATE TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
a Mis
Angle
ULT Static
Radial Load
Approx
Weight
    +.0025
-.0005
+.010
-.010
+.005
-.005
+.005
-.005
REF +.015
-.015
UNF
3A
+.062
-.031
REF (lbs) (lbs)
JMX3 JMXL3 .1900 .625 .312 .250 .437 1.250 10-32 .750 13 2,855 .03
JMX4 JMXL4 .2500 .750 .375 .281 .500 1.562 1/4-28 1.000 16 5,262 .04
JMX5 JMXL5 .3125 .875 .437 .344 .625 1.875 5/16-24 1.250 14 7,640 .07
JMX6 JMXL6 .3750 1.000 .500 .406 .719 1.938 3/8-24 1.250 12 9,550 .11
JMX7 JMXL7 .4375 1.125 .562 .437 .812 2.125 7/16-20 1.375 14 10,290 .16
JMX8 JMXL8 .5000 1.312 .625 .500 .937 2.438 1/2-20 1.500 12 16,242 .25
JMX8-6 JMXL8-6 .3750 1.312 .625 .500 .937 2.438 1/2-20 1.500 12 16,242 .25
JMX10 JMXL10 .6250 1.500 .750 .562 1.125 2.625 5/8-18 1,625 16 17,959 .38
JMX12 JMXL12 .7500 1.750 .875 .687 1.312 2.875 3/4-16 1.750 14 28,090 .60
JMX14 JMXL14 .8750 2.000 .875 .687 1.312 3.375 7/8-14 1.875 12 55,690 .91
JMX14T-770 JMXL14T-770 .8750 2.000 .875 .770 1.375 3.375 7/8-14 1.875 12 45,051 .91
JMX16* JMXL16* 1.000 2.950 1.375 1.015 1.875 4.500 1-1/4-12 2.500 17 107,182 2.74
JMX16-1* JMXL16-1* 1.000 2.950 1.375 1.015 1.875 4.500 1-14 2.500 17 107,182 2.46
JMX20* JMXL20* 1.2500 2.950 1.250 1.015 1.875 4.500 1-1/4-12 2.500 11 107,182 2.74
JMX24* JMXL24* 1.5000 3.500 1.375 1.125 2.312 5.375 1-1/2-12 3.000 8.75 136,750 4.75
JMX32** JMXL32* 2.0000 5.010 1.750 1.437 2.937 8.020 2-12 4.500 7.5 281,150 14.25

* TOLERANCE VARIATION FOR “D” & “A” ARE +/- .020

** TOLERANCE VARIATION FOR “D” & “A” ARE +/- .020 AND CHECK FOR AVAILABILITY

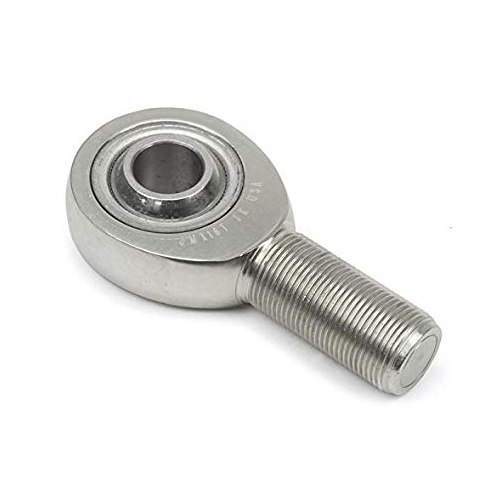

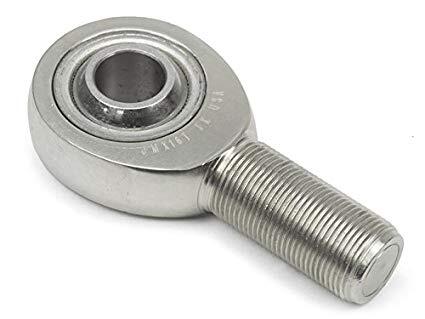

(FKBJMX8T)

SKU FKBJMX8T
Brand FK Rod End
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.040m
Shipping Cubic 0.000480000m3
