Atlas Transfercase [Application: Divorced] [Gear Ratio: 1.5:1] [Case Drop: Left Side] [Tailshaft/Tailhousing: Standard 300M with Speed Sensor] [Fronts
Please email for any aditional information and pricing.
The Advance Adapters Atlas gear-driven transfer cases are the ultimate in gearing and strength. With over 20,000 units sold, the Atlas 2 speed is the solution for combining both on and off-road performance.
The name is legendary and synonymous with rock crawling and off-road vehicle performance. Atlas Transfer Cases have won over the industry for their superior performance, bullet proof design and their ability to get you anywhere you want to go. The Atlas Transfer Case is sure to change the way your vehicle performs off-road. You will benefit greatly by understanding the Atlas characteristics and how to apply them for the ultimate in performance!

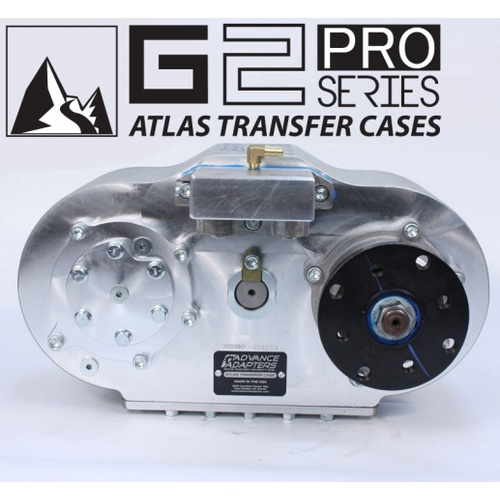

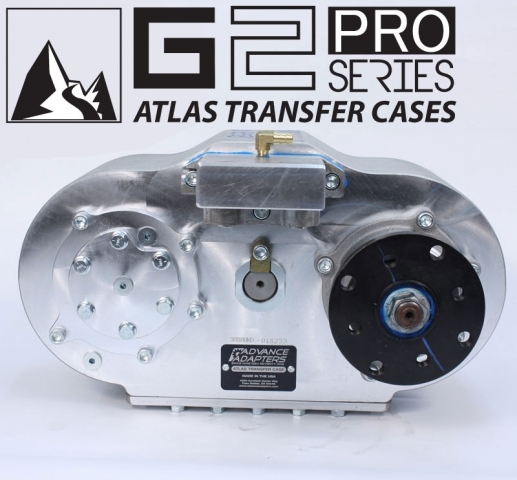

Atlas Transfer Case Builder G2 (Pro Series)
Intended for heavier Gross Vehicle Weight Ratings (GVWR), and high horsepower race applications.The New “G2 Pro Series” Atlas Transfer Case is equipped with a 1-1/2” Idler Shaft assembly offering several advantages in strength.
- 109% Increase in Beam Strength
- 7% Increase in Dynamic, and 15% Static, load rated bearing set
- 25% Increase in thrust surface area to endure higher thrust loads
- 7% Reduction in weight
Atlas 4 Speed Transfer Case:
Advance Adapters has built upon the proven design of the Atlas 2, to create the revolutionary Atlas 4sp. No other transfer case on the market today has 3 separate low range ratios built into a single unit. This transfer case was designed for the off road enthusiast that likes to tackle a large variety of terrain with one vehicle. Selecting one low range ratio that works well for mud, sand and rock crawling, is a compromise but the Atlas 4sp overcomes this limitation. One transfer case that is perfectly suited to any terrain that you may want to conquer.
The 4SP has essentially two parts. The first is the reduction housing. This housing holds a planetary assembly that has a gear ratio of 2.72:1 when in “low” range, and a 1:1 in “high” range. It has one shifter coming out of the top to select the desired range. The planetary is not a synchronized shift-on-the-fly design and must be operated when the vehicle is stopped. (The main case still retains the shift-on-the-fly capability just like the standard Atlas). The reduction housing shifter is designed for a cable shifter.

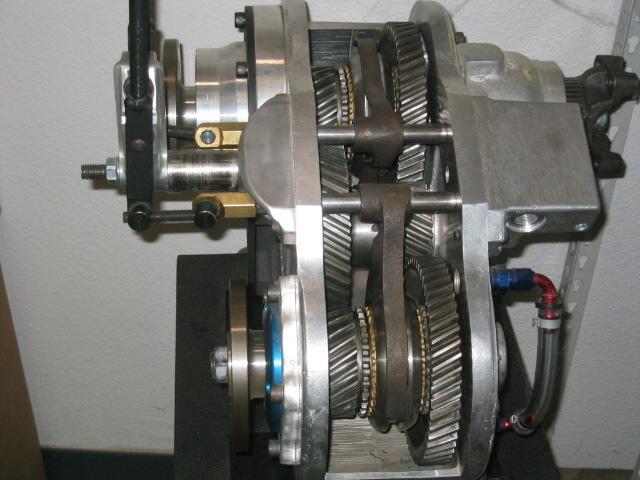

The second part of the 4SP may look the same as the standard Atlas, but it does have some differences. The main case of the 4SP is the same raw casting, but has some machining variations to make it into a 4SP. The main case functions independently from the front reduction housing and retains all of the normal Atlas features (front and rear outputs controlled independently, and the “front only” option). All of the gears are the same. The front output uses all of the same parts along with the cluster.
The strength of this unit is not an issue. We use a planetary assembly that was originally run in a NP241-HD transfer case. The six planetary gear setup has proven its durability and has been used in countless heavy-duty vehicles. Other attributes to the planetary assembly include a very quiet operation, easy shifting, and low rolling resistance. When all of this is put in front of a legendary Atlas Transfer Case, you get the best combination of gear ratios and reliability.
The 4SP units will fit nearly all applications that the standard Atlas will bolt to. These will include spline counts of 21, 23, 27, 29, 31, 32 and 34. The unit has a circular bolt pattern on the front, identical to the one found in Jeep, Ford & Dodge vehicles. We have a variety of different adapters available to retrofit the 4SP into nearly any application. The twin sticks for the main unit can be either the standard linkage or the cable linkage. The standard linkage is offered in a variety of custom packages available for particular vehicles and can be modified to fit many custom applications. The installation of an Atlas 4 speed should be nearly the same as the standard Atlas 2 speed. The Atlas 4 speed is just a bit longer.
We do not recommend flat towing vehicles equipped with the 4 speed due to the additional bearings used in the planetary housing.
Since every Atlas transfer case is custom built to order, the unit will be customized to your vehicle.
